Toolbar Configuration

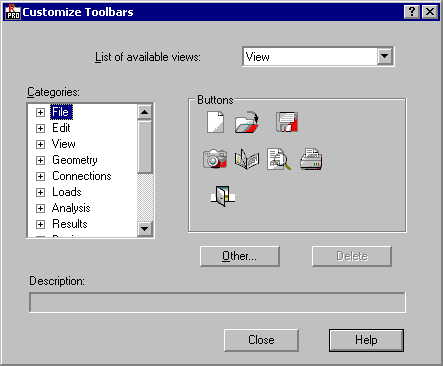

Open the Customize Toolbars dialog, which lets you customize the Robot system toolbar, by clicking Tools menu > Customize > Customize Toolbars.

After the View (available from the module in which the dialog box was open) is selected, appropriate commands for opening submenus and buttons that are defined for each category are displayed in the fields:

Categories

List of menu commands that open the submenu, combo boxes, and toolbars defined in Robot. For each category, buttons defined previously are displayed in the Buttons field.

To define a new button for the selected category, click Other.

Buttons

List of buttons that have not been defined in the selected view.

Description

Describes the button selected from the Buttons field.

Note: You cannot edit descriptions.

The dialog also has buttons:

• Other...

• Delete

  Removes the selected button from the category and the Robot toolbar.

• Close

• Help.

To define a new button, toolbar, or control in the menu, click the selected object and move it to the appropriate place in the menu (keeping the button pressed).
