Materials: Pin and Screws

In this step, we assign AISI 4130 steel to the pin and the two screws.

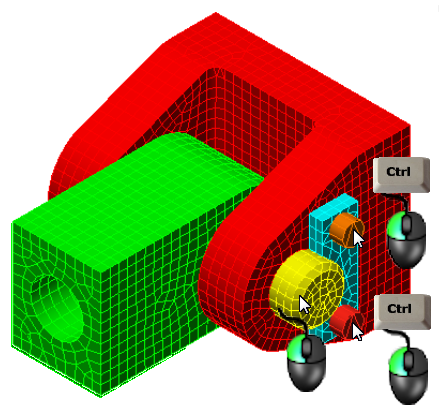

1. Select the pin. While holding Ctrl, select the two screws.

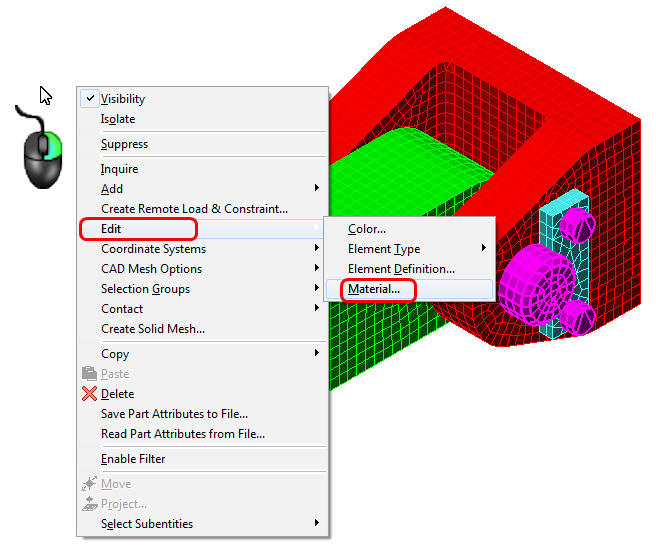

2. Right-click in the display area, and select Edit > Material.

3. Expand the Steel and AISI branches. Select Steel (AISI 4130), and click OK.

4. When asked to confirm, click Yes.

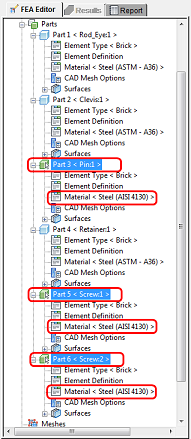

What it should look like…
