Create Two Structured Meshes

1. Click   Mesh Structured Mesh Between 2 Objects.
   1. Create a 16x16 mesh between the small right arc and the straight line...
      • Type 16 in the AA': field and type 16 in the AB: field. This sets the divisions along the selected sketch objects and along the distance between the two objects.

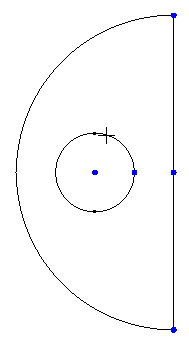

      • Click near the top of the right small arc as shown in the following image.

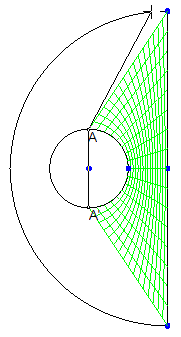

      • Click near the top of the line. Click Apply.

   2. Create a 16x16 mesh between the two left arcs...

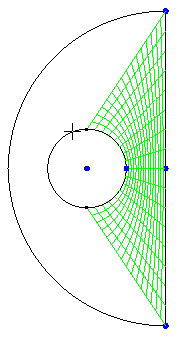

      • Click near the top of the left small arc.

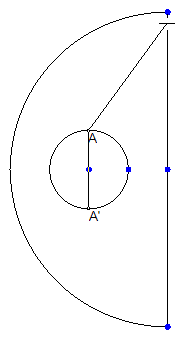

      • Click near the top of the large arc. Click Apply.

      • Press Esc to exit the mesh command.
2. Click  View Navigate Orientation Isometric View.

   The model displays as shown in the following image.
