Visualize Displacement

In this step, we animate the insertion of the spring clip into the buckle part.

1. To animate the displacement, click Results Contours Captures Play.

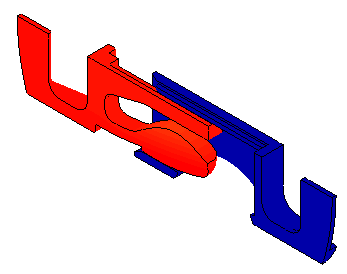

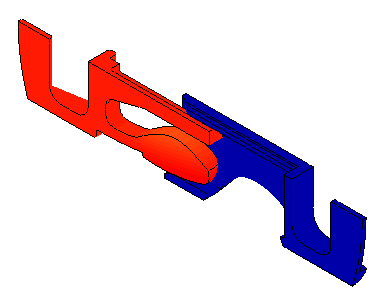

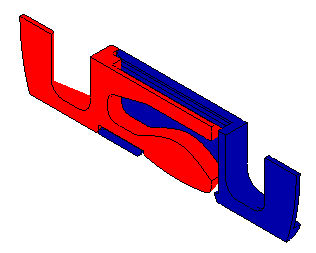

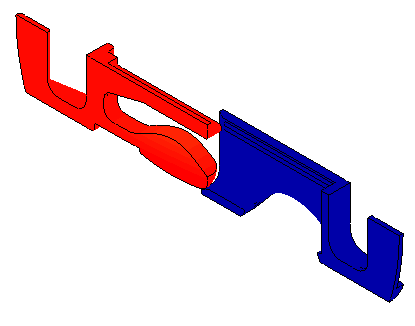

You should see this…

2. When you are ready to proceed, click Stop.
