Solid Mesh the Model

1. Select   Mesh Mesh  3D Mesh Settings.
   1. Click on the Options button.
      • Select Absolute mesh size from the Type pull-down menu.
      • Enter 0.05 in the Size field.
      • Click OK to accept the mesh options.
   2. Click the Mesh model button.
2. When asked to review the mesh results, click No. Notice that a node exists on the surface mesh at the construction vertex that was previously added.
3. Click the   Home icon immediately above the ViewCube.
   Note: The Home icon will not be visible until the cursor is at or near the ViewCube.

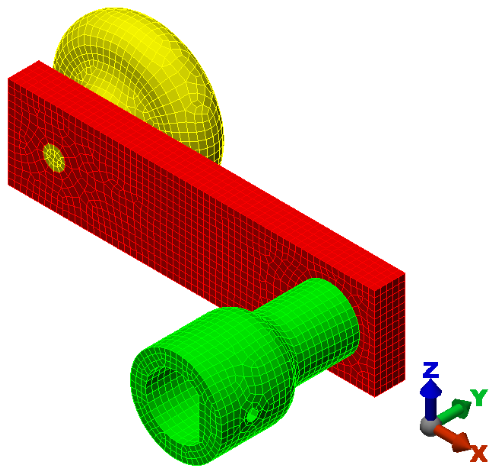

   An isometric view of the meshed model appears as shown in the following image.



Note: Even though the default mesh type is Solid, only the surface mesh has been created at this point. By default, the generation of the interior mesh lines is postponed until the first time the Run Simulation or Check Model command is executed.
