Use the Vault Browser to browse through the Vault Professional folder and file structure, get information on file versions, and preview existing PRO\ENGINEER files stored in Vault Professional without opening them.
You can also do the following with files:
- Open and download
- Find missing
- Update and refresh status
- Add comments and revise
Open the Vault Browser
- From the Vault menu, click Show Browser
.
Switch between the Workspace and Session Browser
Use the buttons provided to switch between the Workspace Browser
and Session Browser
.

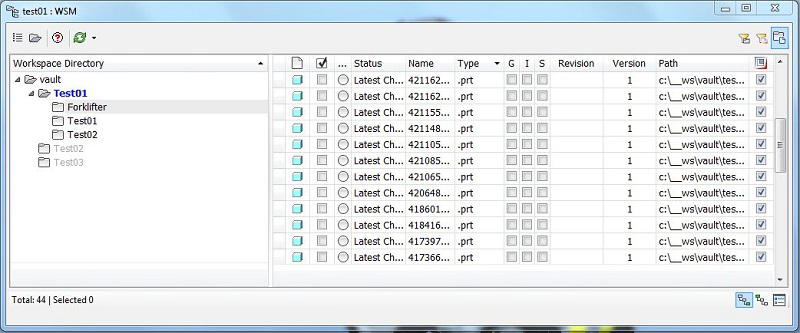

The Workspace Browser shows the workspace folder structure. The current workspace is blue. Unselected sub-workspaces are gray.
The Session Browser shows the currently loaded files in Pro/ENGINEER.
View and Update File Status
You can request the Vault status of a file you haven’t checked out. You can also make sure that your local files are up to date.
- Suppressed Files: Green underlined and italic font.
- Missing Files: Red underlined and italic font.
- Right-click a file in the Vault Browser.
- Select Update Vault Status from the context menu.
Show Information about a File
- Right-click a file in the Vault Browser.
- Select Show Details.
Use the controls in the Show Details dialog box to see different details about the file.
- Browse all versions of a file
or all available released files
.
- Click the Properties tab to see all details about the selected file.
- Click the Uses tab to see what files are used by this file.
- Click the Where Used tab to see what files use this file.
Create Revisions
Create file revisions according to assigned file categories and related revision schemes.
- In the Vault Browser, right-click a file.
- Choose Revise from the context menu.
- In the Revision dialog box, choose which revision index you want to use (Primary, Secondary, or Third).
- Select the files you want to revise.
- Optional: Click the Preview button to preview the results.
- Click Revise.
- Review the results tab and click Finish.
