Beam Tower Critical Buckling Analysis

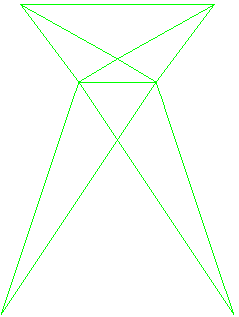

In this tutorial, we will perform a critical buckling analysis of a beam tower to determine the buckling multiplier (based on the applied loads). The buckling multiplier will indicate if the beam tower might collapse due to geometric instability.

The analysis will be based on the loads and constraints used for the Beam Tower Static Stress Analysis tutorial.

Features Illustrated:
