Using this dialog, you can determine parameters of graphic presentation of views and sections through elements of a structure model in formwork drawings.
To display the Graphic presentation dialog:
- On the Drawing template manager dialog, for Drawing components, select Graphic Presentation
- Click New or Modify.
For Style name, enter a name for the component style, and click Save (this is only available when creating a style, not when modifying an existing style).
Use the tabs on the Graphic presentation dialog to define parameters:

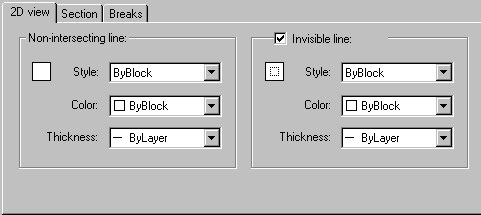

- 2D view - use the options on this tab to define style, color, and thickness parameters of a non-intersecting line and of an invisible line in 2D

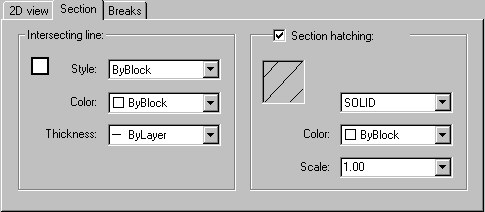

- Section - use the options on this tab to define parameters in section view
- Intersecting line - style, color, and thickness
- Section hatching - style, color, and scale

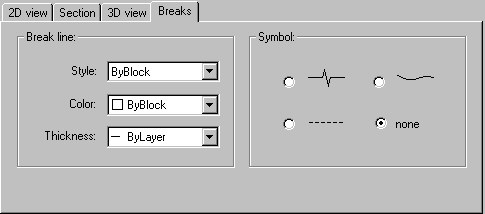

- Breaks - use the options on this tab to define style, color, and thickness parameters of break lines and to define symbol style.
