Door - geometry

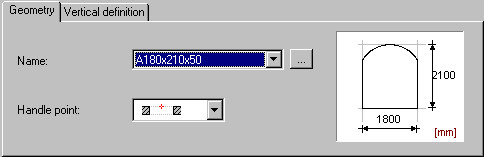

On the Geometry tab of the Door: definition dialog, you can define parameters of a door.

Specify geometry parameters:

• Name - the shape of the door is determined by the name you select. To create a new shape, click Browse (...), which opens the Door list dialog
• Handle point - (it is a point in an opening; the door opening in the wall is inserted in relation to this point); the door handle point may be positioned
  • On the left
  • In the middle
  • On the right .
