Using this option, you can define a wall in both the 3D and 2D views of a structure model. Walls are inserted in horizontal plans of a given story (in the top view).
To begin defining the wall, open the Wall Definition dialog from:
- Menu Formwork Drawings > Define > Wall
- Ribbon: ASD - Model > Elements > Wall
- Toolbar: Definition > Wall
- Command line: RBCX_DEF_WALL.

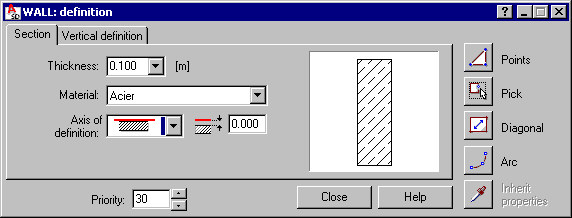

Use the tabs on the Wall Definition dialog to define parameters:
For Priority, enter a value that defines the priority of interpenetration (cutting to fit) of structure elements that overlap with each other.
Use the icons on the right to select a mode of graphic definition of a wall.
A wall may be defined as:
- Rectilinear wall
- specify the beginning and end points of the wall in a plan of a building story - Arc-shaped wall
- specify 3 successive points of an arc in a plan of a building story (see also: Definition of parameters of arc elements - Job Preferences > Options) - Wall composed of segments - defined by indicating a diagonal; walls will be defined along the perimeter of the rectangle defined by the diagonal.
Click
(Select) to convert indicated arcs and open polylines to walls.
Click
(Inherit properties) located in the bottom right corner to inherit parameters from a previously defined wall.
