Wall - vertical definition

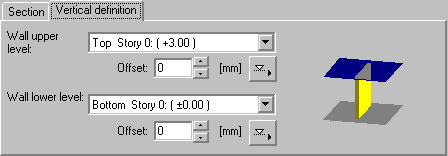

On the Vertical definition tab of the Wall: definition dialog, you can specify the location of a wall with respect to an active story.

The Wall upper level and Wall lower level lists include all the defined levels of an active story of a building. The vertical location of a wall in a building is defined by selecting a plane in which the top and bottom faces of the wall should be positioned (for example, Top - Story 2, Bottom - Story 2).

When defining the vertical location of a wall, you can define an offset from the lower or upper level of a story. If the offset equals 0, the definition line coincides with the upper or lower plane. Click to select a horizontal element edge that determines an offset value.

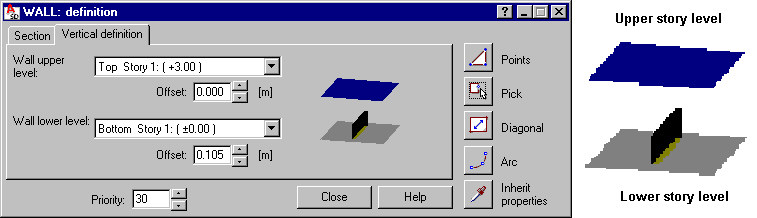

Note: You can also define a wall by attaching it only to a single level of a story. In the example shown below, the wall is attached to only the lower level of a story; the upper and lower levels of the wall then assume the value (for example, Bottom - Story 2). The wall height is defined then by the offset value.

A sign convention for offset values has been adopted for both the lower and upper levels of a story:
