Window - geometry

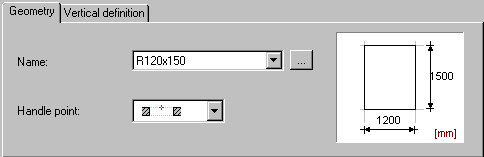

On the Geometry tab of the Window: definition dialog, you can define parameters of a window.

Specify geometry parameters:

• Name - the shape of the window opening is determined by the name you select. To create a new shape, click Browse (...), which opens the Window list dialog
• Handle point (it is a point in an opening; the window opening in the wall is inserted in relation to this point); the window handle point may be positioned
  • On the left
  • In the middle
  • On the right .
