Manager of plane properties

Using this option, you can view or edit parameters of intermediate or inclined planes defined in a structure model.

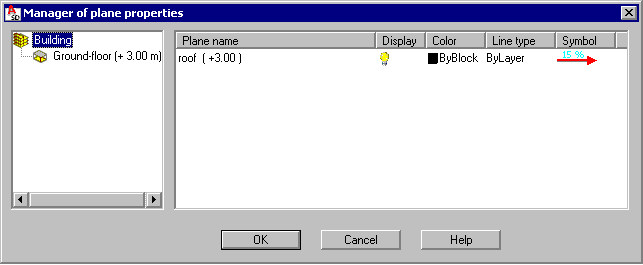

To begin editing plane parameters, open the Manager of plane properties dialog from:

• Menu: Formwork Drawings > Display > Show planes
• Ribbon: ASD - Model > Display > Show planes
• Toolbar: Define > Show planes
• Command line: RBCX_EDIT_PLANES.

View or edit parameters for defined planes:

• Plane name (with additional information regarding the level of plane definition)
• Display - click the light bulb symbol to change the plane display
• Color of plane on the screen
• Line type used for plane display
• Inclination symbol - None, arrow, or arrow with the inclination value.

For each of the parameters, you can right-click to access additional options:

• Edit - opens the dialog for modification of parameters of a selected plane
• Delete - deletes a selected plane.
