Column - section

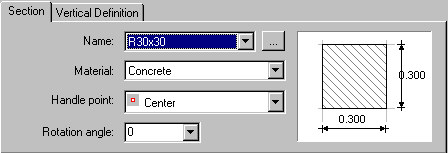

On the Section tab of the Column - definition dialog, you can define parameters of a column cross-section.

Specify parameters for each type of column cross-section:

• Name - click the Browse (...) button and make a selection in the Section list dialog
• Material
• Handle point

  - Rectangular section



  - Round section



  - L-shaped section



• Angle - select an available value (0, 45, 90, 135, or 180) or enter a different value for the angle of rotation of the column cross-section. The definition of this angle refers to the current (local) system of coordinates.
