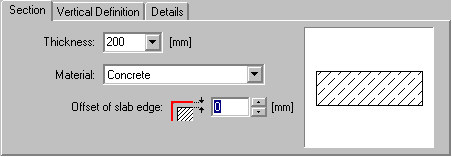

On the Section tab of the Slab: definition dialog, you can define parameters of a slab cross-section.
Specify parameters for each type of slab cross-section:
- Thickness
- Material
- Offset of slab edge - refer to the images below for the definition of the slab with various offsets:
Slab offset is greater than zero, and characteristic points of the slab are defined clockwise.
Slab offset is greater than zero, and characteristic points of the slab are defined counterclockwise.
