Apply Boundary Conditions

Create boundary conditions that minimally constrain the movement of the bottom surface of the coupon and prevent rigid body motion.

1. Switch to the Load module.
2. Create a boundary condition (BC > Create) named Bottom.
3. Set the step to Initial and select Displacement/Rotation. Click Continue.

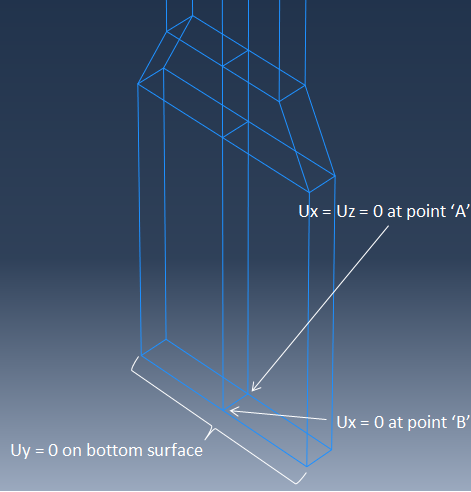

4. Select the bottom surface of the coupon (see image below) as the region, click Done, and set U2 = 0.
5. Create a second Displacement/Rotation type boundary condition named Point_A. Select the point labeled 'A' in the image below and set U1 = 0 and U3 = 0.
6. Create a third Displacement/Rotation type boundary condition named Point_B. Select the point labeled 'B' in the image below and set U1 = 0.
