Map Results

Now we are ready to map the fiber orientations to the structural model.

  1. Click Home > Mapping > Map Results.

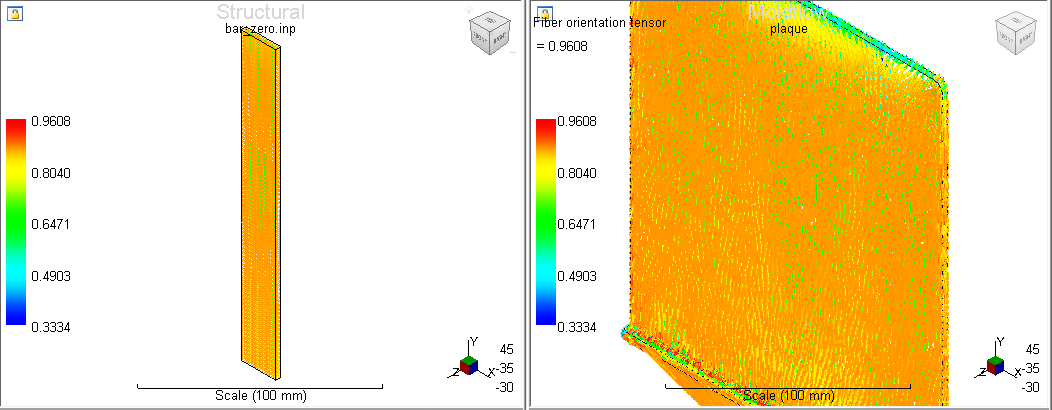

  2. Rotate the model as necessary to examine the fiber orientations mapped to the structural model. Switch to Fiber Orientation view if necessary (Home > View Results > Fiber Orientation).

Parent topic: Tutorial 3 - Replicate Material Data Inputs
