Align Models

1. Click Yes when prompted to use the interactive alignment tool.

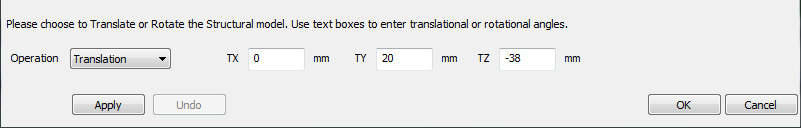

2. Enter 20 mm for TY and -38 mm for TZ and click Apply.

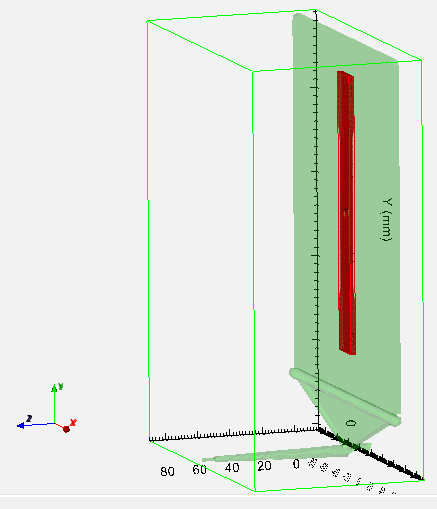

3. Use your mouse to rotate the model and make sure the two parts are aligned properly. Click OK.
