Run the Analysis and Review Results

Run the Analysis

1. Click (Home > Analysis > Start Analysis).
2. When the analysis is finished, click Logs to close the Logs panel.

Review Results

1. Click Home > Results > Results.
2. Click Fiber orientation tensor in the study tasks list.

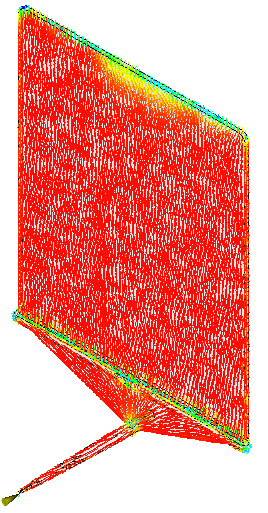

3. Rotate the model as necessary to see the predicted orientations for our glass fiber reinforced material.



4. Save the model.
