To Specify Which Door and Window Assembly Edges Use a Frame Assignment

When you create a frame assignment, you need to specify the edges of the frame to use that assignment.

Frame edges that are not assigned a frame definition are not displayed.

1. Click Manage tabStyle & Display panelStyle Manager.
2. Expand Architectural Objects Door/Window Assembly Styles.
   Note: Alternatively, select a door/window assembly in the drawing, and click Door/Window Assembly tab General panel Edit Style drop-down Door/Window Assembly Styles.
3. Select a door/window assembly style.
4. Click the Design Rules tab.
5. In the left pane, select a grid.
6. Select a frame assignment.

   Location is the only way to specify the frame edges.

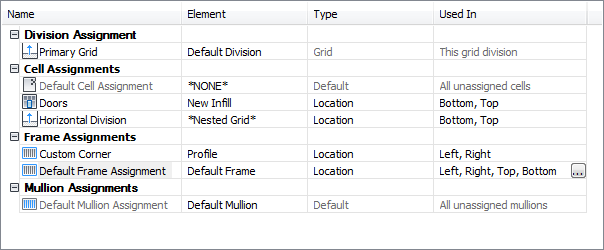

7. Click the Used In column, and then click the .


8. Select the edges that you want to use this assignment - Left, Right, Top, or Bottom - and click OK.

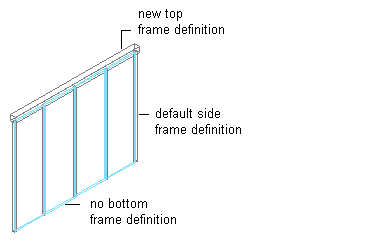

   Specifying different Door/Window Assemblies frame definitions

   Note: Do not assign multiple definitions to the same frame edge because only the last definition assigned to the edge is used.
9. Click OK.
