Insert Destination Code Dialog Box

Inserts a wire Destination signal arrow with a wire number from a matching Source.

Find

 Command entry:  AEDESTINATION

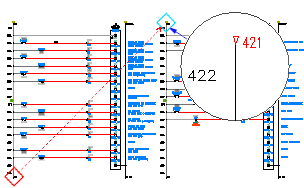

The program retrieves the wire number for a destination-arrowed wire network from its associated source-arrowed wire network. Enter the same number, word, or phrase the source arrow carries to link to it.

Note: A Destination signal arrow cannot be tied to a wire network that carries a pre-assigned fixed wire number.

Code	Specifies the code for the destination signal. Enter a unique number/word/phrase, 32-character maximum, for AutoCAD Electrical to use to link the destination wire network internally to any source wire networks.
Description	(optional) Specifies the description for the destination signal.
Defaults	Opens an ASCII text file from which you can quickly pick standard descriptions.
Recent	Picks from recently inserted codes.
Drawing	Displays drawing-wide pick lists of all source/destination codes used so far.
Project	Displays project-wide pick lists of all source/destination codes used so far.
Pick	Picks on an existing wire network. AutoCAD Electrical searches it for an existing source arrow and retrieves its signal code for use on this new destination arrow.
Signal Arrow Style	Specifies the arrow style to use for the destination signal. There are currently nine styles to choose from.
Ok + Update Source	Finishes the destination arrow insert and updates the source arrow with this destination arrow.
