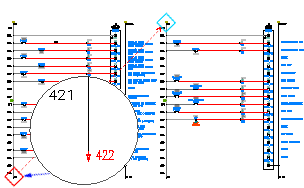

Inserts a wire Source signal arrow and transfers its wire number to destination wire networks.
Find
Command entry:
AESOURCE
The wire number from a source-arrowed wire network copies to all associated destination-arrowed wire networks. Enter a unique number, word, or phrase of 32 characters maximum to link the source wire network to all destination wire networks internally.
|
Code |
Specifies the code for the source signal. Enter a unique number/word/phrase, 32-character maximum, for AutoCAD Electrical to use to link the source wire network internally to any destination wire networks. |
|
Use |
Places the specified value into the code box. It is useful for using the next number in a sequence. |
|
Description |
(optional) Specifies the description for the source signal. |
|
Defaults |
Opens an ASCII text file, WDSRCDST.WDD, from which you can quickly pick standard descriptions. |
|
Recent |
Picks from recently inserted codes. |
|
Drawing |
Displays drawing-wide pick lists of all source/destination codes used so far. |
|
Project |
Displays project-wide pick lists of all source/destination codes used so far. |
|
Search |
Follows the selected wire network looking for a destination arrow at the other end. If found, repeat its signal code for this new source arrow. |
|
Pick |
Picks on an existing wire network. AutoCAD Electrical searches it for an existing destination arrow and retrieves its signal code for use on this new source arrow. |
|
Signal Arrow Style |
Specifies the arrow style to use for the source signal. Select from the four predefined styles or a user-defined style. |
|
OK + Update Destination |
Finishes the source arrow insert and updates the destination arrow with this source arrow. |
