Creates a circle.
Access Methods
Button
Toolbar: Drafting tool set
Closed Shapes tool group Circle flyout Menu:
Draw
Circle
Center, Radius
List of Prompts
The following prompts are displayed.
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: Specify a point or enter an option
Center Point
Draws a circle based on a center point and a diameter or a radius.

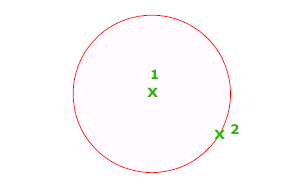

- Radius
-
Defines the radius of the circle. Enter a value, or specify a point.
For example:

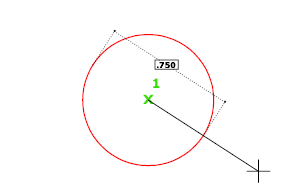

- Diameter
-
Defines the diameter of the circle. Enter a value, or specify a second point.
For example:

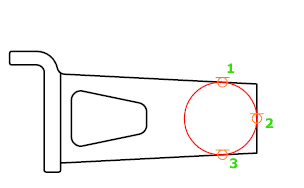

3P (Three Points)
Draws a circle based on three points on the circumference.
For example:

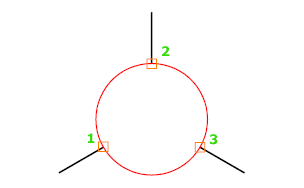

Tan, Tan, Tan
Creates a circle tangent to three objects.
For example:
2P (Two Points)
Draws a circle based on two endpoints of the diameter.
For example:
TTR (Tangent, Tangent, Radius)
Draws a circle with a specified radius tangent to two objects.
Sometimes more than one circle matches the specified criteria. The program draws the circle of the specified radius whose tangent points are closest to the selected points.
For example:
