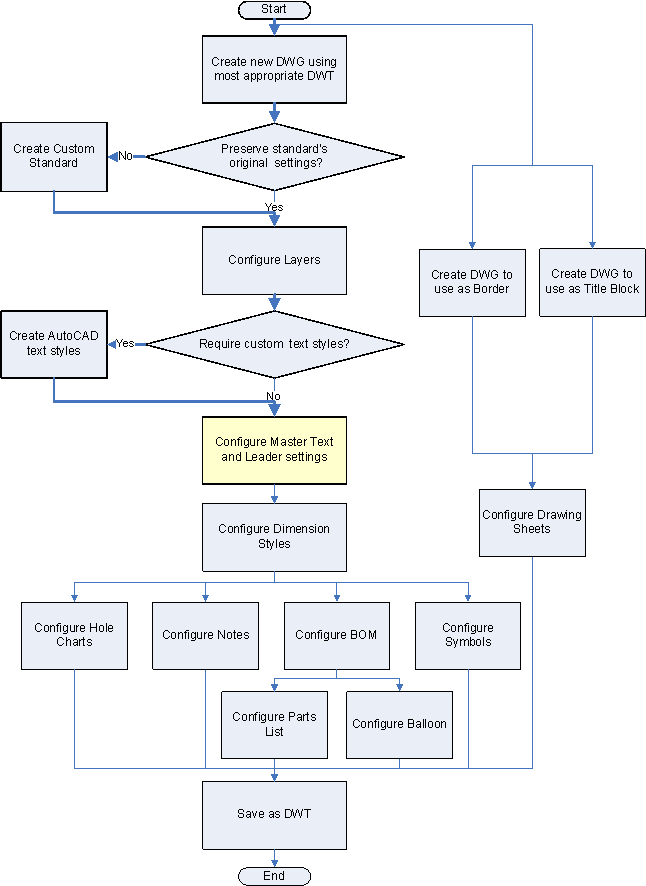

Where am I in the flowchart?
Text Style and Height
Because all existing drawings use the TrueType font “ISOCPEUR,” AutoCAD Mechanical is to use the same font for all annotation types.
The height and color of each annotation type must match that of the existing drawings. The following table lists the annotation type text height and color along with the description used in AutoCAD Mechanical.
|
Annotation Type |
Text Height |
Text Color |
AutoCAD Mechanical Description |
|---|---|---|---|
|
Dimension value |
3.5 mm |
Yellow (2) |
Text Medium |
|
Dimension tolerance |
2.5 mm |
Red (1) |
Text Small |
|
Note text |
3.5 mm |
Yellow (2) |
Text Medium |
|
Balloon text |
5.0 mm |
White (7) |
Text Large |
|
Parts Lists text |
3.5 mm |
Yellow (2) |
Text Medium |
