Working with BIM (MEP) Connectors

After creating factory assets with BIM (MEP) connectors in Inventor Factory, you can view information about those connections in Navisworks Factory.

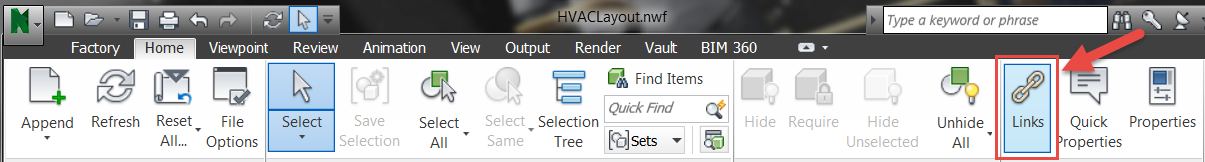

1. First, invoke the Links command located on the ribbon.

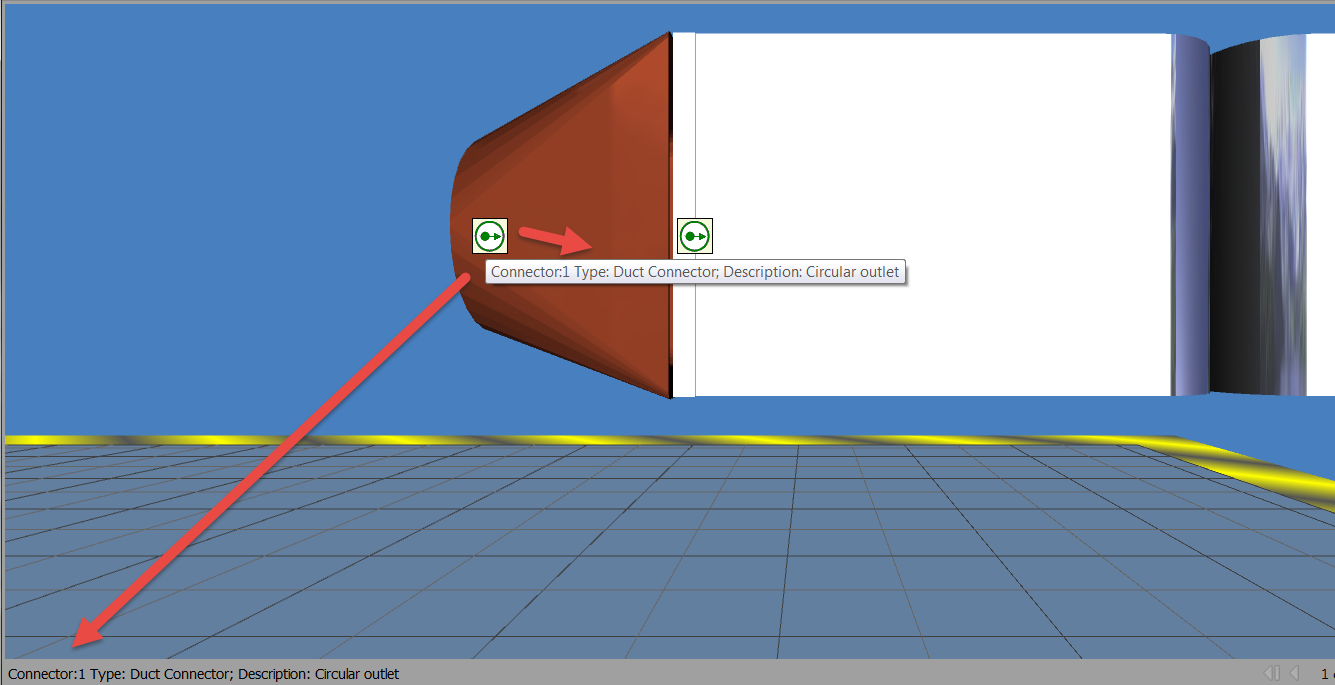

2. Information about the connector displays as one line near the connection point. It also displays at the bottom of the dashboard on the lower left-hand side.
