Button Symbols

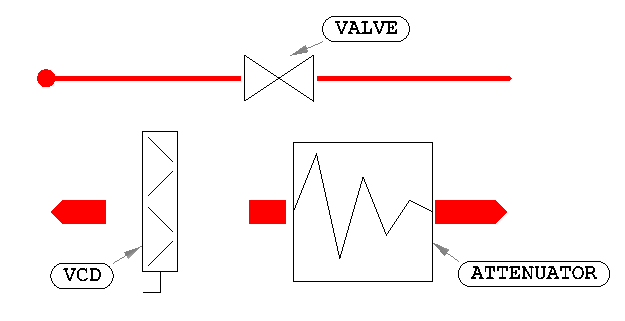

Symbols are used to show placement of objects on to Design Lines. Symbols can be plan view ITM files or 2D DXF drawings that have the 0,0 point through the center of the object.

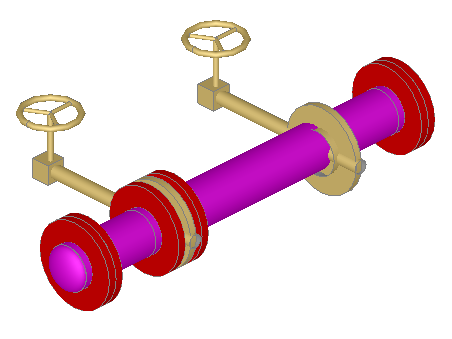

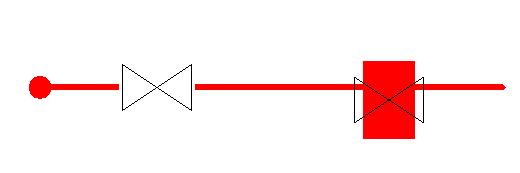

Note: Symbols that are unconnected to Design Lines will not be able to fill in 3D with connectivity rules (they could be missing flange connections). These are highlighted with a red background.

Creating your own Symbols

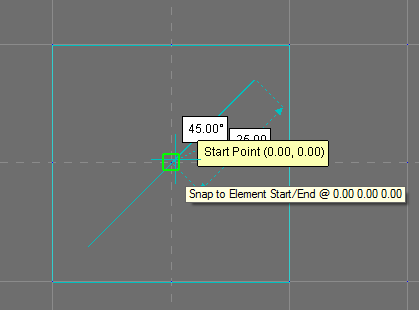

  1. Using an external 2D drawing package or our very own Opus design package. (Located from enabling Item Folders > View > Toolbars > Item Folders Toolbar, and then selecting the button as shown below.) Create the 2D symbol ensuring the 0,0 co-ordination is positioned to the center of the part.

  2. From your Services view, Right click on the button requiring assignemtn of the symbol. Select Button Properties.

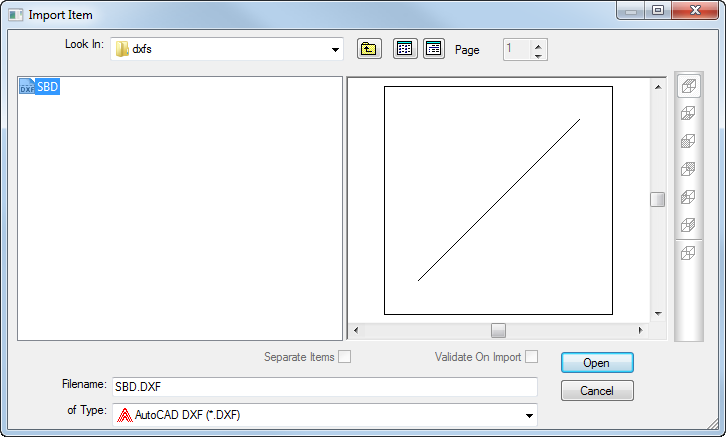

  3. Select the Symbol button and browse to the location of the daved DXF, ITM file.

  4. Ensure the "of Type" drop down is selected with the correct format.

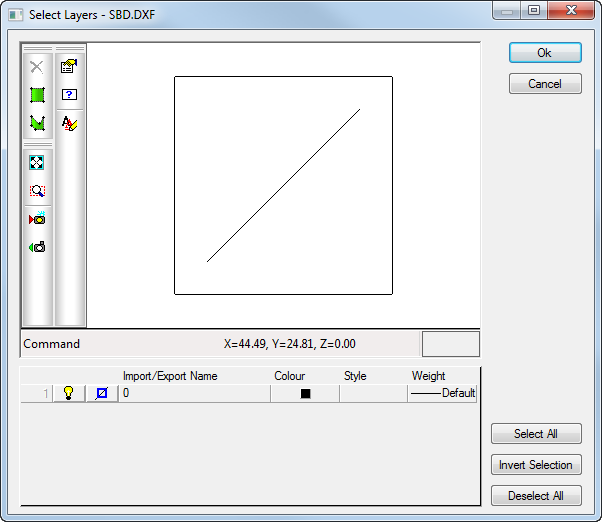

  5. Click Open and confirm the Select Layers of the DXF by selecting OK.

  6. The symbol is assigned to the button and is available for placement onto a Design Line.
Parent topic: Design Line Button Properties
