Display Job Contents

TOOLBAR COMMAND LINE JOBCONTENTS

The job contents window displays a detailed list all of the items that exist in the current drawing. For example, it provides a quick method of viewing Items' Connectors or Specifications.

1. Click the Display Job Contents view button .

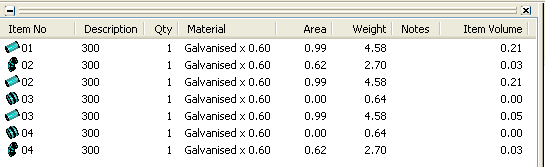

   You should now see the Job Contents window as shown below, the list of items and the details.



Note:

Ensure you are viewing the Detail List as shown above (if you are not viewing the Details List - Right Click blank area below the Header bar, selecting from the Right Click menu: View > Details.

The Header bar is customisable allowing additional details to be shown such as Specification, Connectors etc., to do this:

• Right Click on the Header bar, select Customise from the Right Click menu.

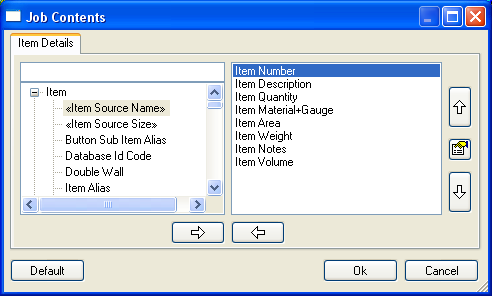

• The Job Contents dialogue should now be present.



• Click the icon to move the selected details to the right hand pane.
• The up and down arrows will place the highlighted item in display order reading left to right.
