Item Numbers

TOOLBAR
COMMAND LINE	TAGS
SHIFT/RIGHT CLICK	Numbers

The Numbers command allows the user to display number labels to drawn items. The item Number is most commonly used as a way of identifying fittings either for manufacture or location purposes. The number can be a combination of letters and or numbers.

Select Edit Main Database

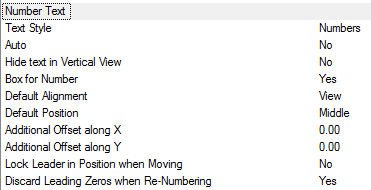

Scroll down to the Number Text options.
The Style box is used to specify the AutoCAD Text Style to be used. If the Text Style Numbers is not present, then Standard is used by default.

Options

Text Style - Text properties taken from Style named here, if the style dose not exist "Standard" is used. Height, width, font etc are defaulted from style. If only displaying in Paper space, height should be size required for plotting.
Auto - Automatically applies the Numbers label to each item drawn.
Box for Number - draws a oblong box around the tag if set to "Yes". You can override the graphics with ITM-NUM, ITM-NUM1, ITM-NUM2, ITM-NUM3 etc (Block names) Topic : Item Number Custom Blocks
Lock Leader in Position when Moving - When spooling and moving Locks the leader arrow onto the Default Node Position.

Alignment Options

Default Alignment - Sets the alignment to View, Length, Connector.
Default Position - Sets the default position to Below, Middle, Above, relative to the centre node.
Additional Offset along X - Adjusts the Number Label Distance in the (X) axis, relative to the current Default position set.
Additional Offset along Y - Adjusts the Number Label Distance in the (Y) axis, relative to the current Default position set.

Using the Numbers command

Draw the Items as normal.
Click the Numbers icon.
Select the Items to display the numbers. This can be done using any of AutoCAD normal selection commands.
Right click to execute the command.

The Item Numbers should now be displayed. The Numbers text can be moved and rotated using the AutoCAD Grips or using the CADmep⁺ Move Text and Rotate Text commands.

Additional Notes:

The RENUMBER command allows the user to change the current item Numbers assigned.
Selecting and reapplying any of the CADmep⁺ Label commands will toggle the Label on or off.
If the Label is toggled off then on again it will remember its original position and rotation.
If no Annotation is displayed check that the AutoCAD Text Style has been setup correctly.
