CADmep+ annotation tools are used to apply Dimensions and additional fitting information onto CAD-Duct/CAD-Mech Items.
Annotation Types

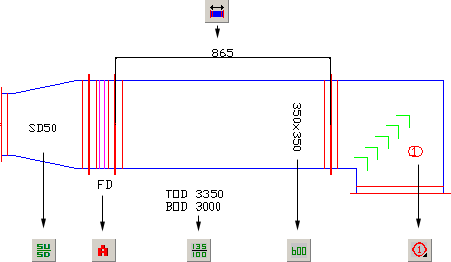

Each annotation command is covered in greater detail in the following topics. Click one of the icons below to view individual topics.
Transition and Sets text
Item Alias text
Item Levels text
Item Lengths
Item Sizes
Item Numbers
Annotation Modification
Once placed, Annotation can be moved using AutoCAD standard grips or CAD-Duct Solids/CAD-Mech, Move Text
and Rotate Text
buttons.
The Rotate Text and Move Text tools are covered in greater detail in the following topics. Click one of the icons below to view individual topics:
Move Text
Rotate Text
Additional Annotation Options

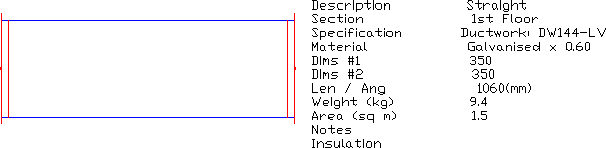

Additional Information can be displayed for each Item in the form of Item Pattern Information.
Although this option is not available from the toolbar it can be accessed from the Shift + Right Click menu. The topic that covers this option is located in Item Pattern Information.
