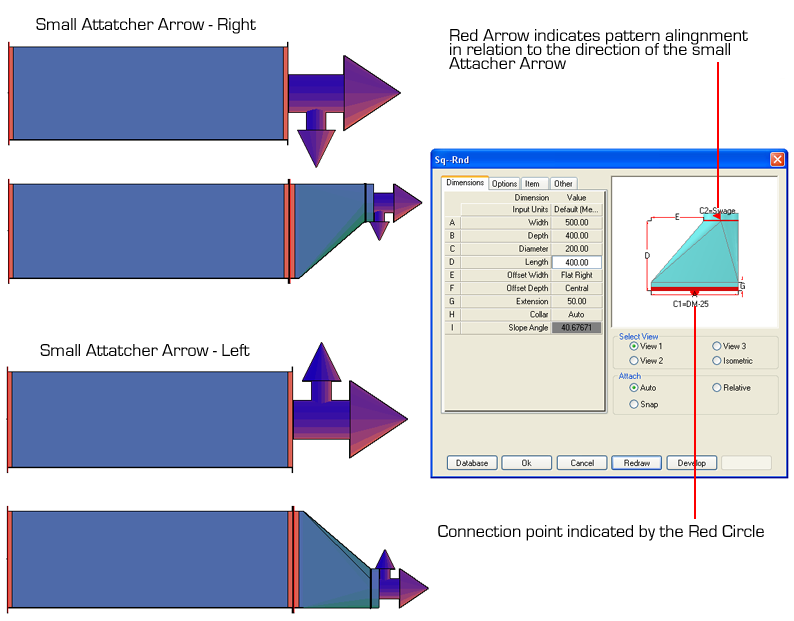

There are two methods of aligning the Flat Sides:
- Use the Attacher Arrow to indicate the alignment.
- Use the Offset Width/Depth dimensions to align correctly.
Method 2 allows the Offset dimensions "E" and "F" to be reported out correctly for Export or Manufacturing.
Note: The CAD/CAM departments have to work to the same convention for defining Flat on Top/Bottom, Flat Left/Right. The Pattern Options: Offset Width (Dimension Option E) and Offset Depth (Dimension Option F) allow the convention to be defined.
