Manual Nesting

Description:

Manual nesting can be used to completely nest all parts or to adjust and modify a generated auto-nest prior to writing NC. Manual nest gives the user total control over the way parts will be cut. It also contains functions that provide profiling options as applied to an entire sheet, rather than individual parts.

• After entering a job and it is ready to be nested, click Utilities Manual Nest or select the Manual Nest icon from the Utility Bar.

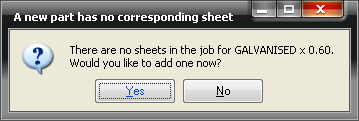

• This dialogue box will be displayed every time a new material and gauge combination is encountered.
• Click Yes to add a new sheet for that particular material and gauge.

Note: If the General Nesting tab has been set to Use Default Sheets, an empty sheet will be added automatically, this will be the same size as the default sheet size set in File > Setup > Main Database > Materials or select the Main Database icon from the Utility Bar. If the General Nesting has been set to Prompt For New Sheet Size, the user will be able to select to sheet size to be used, using the following dialogue box.

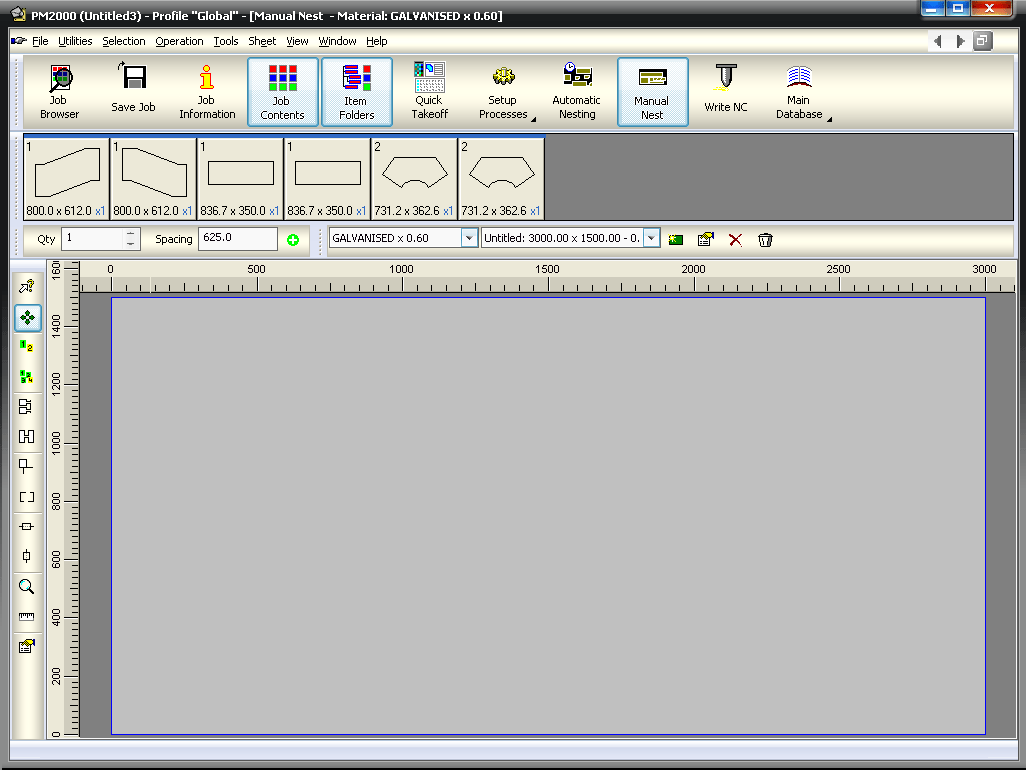

The Manual Nest screen will now be visible. This screen is built around four main components. They are, Parts, Sheet Control Centre, Sheet Display and Menus & Shortcut Keys. They are described below.

Parts The top section displays the parts that are to be nested on the material and gauge displayed in the sheet control centre (further details below).

The number in the top left corner of each part is the part number, the number below the part is the blank size (smallest bounding rectangle) and the blue number in the bottom right corner is the quantity of that particular part left to nest.

Until the part has been nested on a sheet it will appear as below.

When a part is nested onto the sheet, the display changes to reflect this.

The quantity has been adjusted and a blue cross indicates that no more developments of this part are available to nest.

Note: The instructions above are the default method. There is another option however.

• Within Manual Nest, click View > Only Show Remaining Parts. Rather than placing a cross through the part, it will be removed from the Parts sections altogether, therefore only showing the remaining parts.

It is also possible to right-click on any of the parts to display the following menu.

Auto Quantity This option is only available on standard parts and profiled parts. It means that an unspecified quantity can be nested, therefore it is primarily used to fill up the remainder of a sheet. It is particularly useful when combined with the fill command explained below.

Empty This option removes a part from the parts menu. This can be used if a development of a part is not needed. For example, if only the two cheeks of a square bend were required, the wrappers could be set to empty.

Properties This option can be used to display the properties of the item from which the development originated. This is useful for identifying parts, and also gives access to graining options for a part. The part quantity can also be adjusted here.

Sheet Control Centre The sheet control centre can be either docked, or floating (as pictured below).

It comprises three main elements.

• The drop-down menu on the left displays the material and gauge currently being nested on.
• To change this, click on the drop-down menu and it will display all of the material and gauge combinations used in the job.



• The central drop-down menu displays all of the sheets created for a particular material and gauge combination. It displays the sheet size and the percentage of the sheet currently being used.
• To change the sheet being displayed, click on the drop-down menu and select a different sheet. The list of sheets will only be those relevant to the material and gauge selected above.



• The New icon will create a new sheet to the default sheet size. This sheet will be the same material and gauge as that selected above.

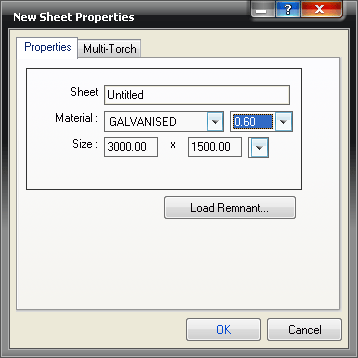

• The Properties icon can be used to modify the displayed sheet's size and can be used to set a multiple torch configuration for the displayed sheet only. Changes can only be made to a sheet if it is empty.
• Clicking the Delete icon will remove all parts currently nested on the displayed sheet. The sheet itself will not be deleted.
• The Delete icon icon will delete the displayed sheet from the job.

Note: The Sheet Control Centre can be switched on and off, click View > Toolbars > Sheet Control Centre.

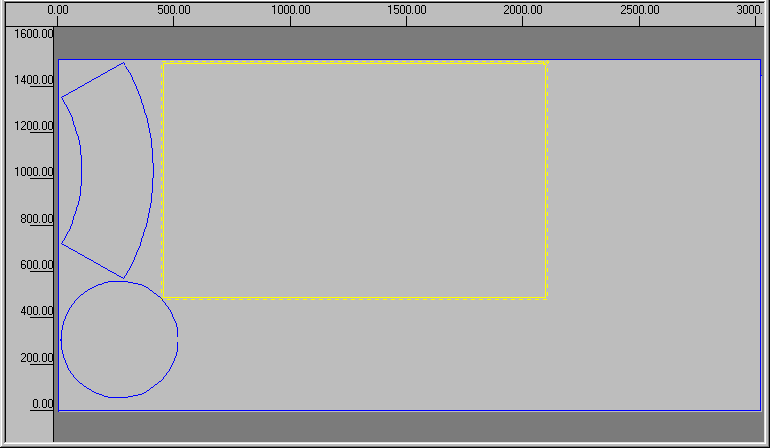

Sheet Display The largest section at the Manual Nesting screen displays a graphical representation of the sheet to be nested on.

Manual Nesting - General Notes

1. Along the left hand and top edges rulers are visible. These can be used to see the size of sheet being worked on.
2. Parts with a yellow border are currently selected. The solid line border around the part shows the extents and also indicates that the part is placed on the sheet, therefore it can only be taken off the sheet again by pressing the Del key.
3. The dotted line shows the part extents plus the minimum margin between parts. This is determined in the General Nesting tab within the Main Database.
4. The dashed line will also indicate the rotation of the part, if the part is rotated in such a way that it no longer fits on the sheet.

Placing parts on a sheet

• To place a part on the sheet, left click on the relevant part in the Parts section at the top. The part will now be attached to the cursor. Move the cursor down onto the sheet.
• Place the mouse in roughly the correct place and left click to place a part.
  Note: There must be a solid yellow line around the part for it to fit.
• To rotate a part, click and hold the right mouse button and move the mouse in a circular motion. As a default the snap angle of rotation is set to 15 degrees.
• To modify this angle, click Operation > Tool Options, and the following dialogue box will appear.



• This allows the user to enter a value to define the default snap angle when rotating.

Note: It is also possible to override this setting. Hold the Ctrl key whilst rotating the part to snap to 90 degrees, or hold the Shift key to snap to 1 degree.

Move and rotate operations can be combined to enable the user to roughly position the part and then rotate it into alignment. To do this, hold both buttons simultaneously and then when the part is rotated, release the right button only, thus still retaining control of the positioning of the part.

Menus and Shortcut Keys There are several menus that are relevant to Manual Nesting only, they are Selection, Operation, Tools, Sheet and View. They are explained below.

Selection The selection menu is used to perform certain operations that can also be accessed using the keyboard. The keyboard shortcuts are listed next to the function name. Cut, Copy and Paste can be used in the standard Windows manner.

Nudge / Undo Nudge If the Nudge option is selected, the user is offered the Up, Down, Left and Right. These are used to move parts on a sheet as far as possible is a particular direction. The keyboard arrow keys also perform this function. It is useful for ensuring that parts are nested as close as possible to each other. Undo Nudge can be used to undo the last nudge performed.

Fill Sheet This option is used to place multiple instances of the same part into a nest without having to drag them down from the Parts section independently. When Fill Sheet is selected the user is again offered the Up, Down, Left and Right choices. The fill will go as far as possible in a direction and fills can be combined to quickly fill a sheet. The keyboard arrows combined with the Ctrl key perform the same function.

Note: The Fill Sheet option will only use the amount of parts associated with the selected item.

Mirror This option will flip a part over. This must be used with caution as the flipped part will be cut with its outer and inner sides reversed when compared to other parts on the sheet. The Tab key will perform the function also.

Select All, Deselect All and Invert Selection These options govern which parts are being manipulated. Selected parts will appear in Yellow.

Delete The Delete option will remove all of the highlighted or selected items.

Operation The Operation menu allows the user to access the manual nest modes. The following explains each of the available options.

Select

• Click Operation > Select, or click on the Select icon

This option allows for parts to be selected or de-selected by left clicking on them, without having to use the Ctrl key. It also allows the user to right-click on a nested part to show the parent item's Properties. While Select is activated, parts on a nest cannot be moved.

Edit

• Click Operation > Edit, or click on the Edit icon

This is the default mode, all operations connected with moving parts, placing parts, flipping parts etc. are performed while in Edit mode.

Simple Cut Order

• Click Operation > Simple Cut Order, or select the Simple Cut Order icon

This enables the cut order for the sheet to be altered on a part-by-part basis. To use this option;

• Left click on the green squares in the order of the parts to be cut. If the cut order needs to be determined from an existing number onwards, right-click on the number to be the next assigned. This will activate that number as the current one. For example, if 1 - 4 were in the correct order but 5, 6 and 7 needed modifying, right-click the existing number 5, which turns that number yellow, then left click the new number 5 to reassign. Further left clicks will assign 6 and 7.

Advanced Cut Order

• Click Operation > Advanced Cut Order, or click on the Advanced Cut Order icon

This allows the cut order for the sheet to be altered on a cut-by-cut basis. Each individual cut has a separate number which can be reassigned using the method detailed above.

Chain Cut

Click Operation > Chain Cut, or select the Chain Cut icon

This mode enables parts to be cut in one continuous torch activation, the purpose of which is to minimise pierce points. To place a chain cut;

• Click and drag from one island to another.

Chained cuts will, in general, only cut around half of one part before moving on to the next. The cut will return to finish the part after cutting any parts that are chained to it. The system will try to calculate the optimum cut path based on lead positions and on the parts that are chained or bridged together.

Note: The Lead In styles for chain cuts can be set up in the Tool options within Manual Nesting Further details can be found later in this topic.

Bridge Cut

Click Operation > Bridge Cut, or select the Bridge Cut icon

Similarly to the chain cut option, this also allows for parts to be cut with a continuous torch activation. A bridge cut will cut an entire part before cutting a path to the next part. This characteristic of bridge cuts means that only two parts can be bridged together. To connect more than two parts, a chain cut is used. The main purpose of bridging is that it can be used to terminate the end of a chained run so that the cut can turn around.

Placing bridge cuts works in exactly the same way as chain cuts. Once placed, both can be modified by right- clicking on the small yellow start/end square.

Leadins

• Click Operation > Leadins, or click on the Lead-ins icon

This option allows for leads on the nested parts to be re-positioned.

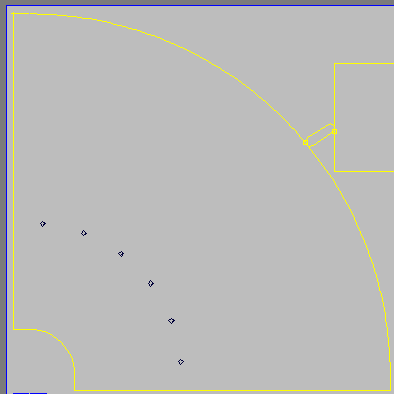

The grey circle indicates the current lead position. To move a lead-in;

• Left click and hold the mouse on a lead-in.
• Then drag this around the island and the circle will snap to valid positions. On some parts it may only snap to the four corners of a rectangle, for example. This is because the NC code that will be generated will treat each of those four sides as a single instruction, therefore only the corners will be valid lead positions.

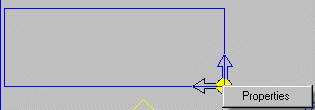

Moving the mouse over the lead will display the cut direction indicator (blue) and the alternate cut path indicator (black). It is possible to alter the direction that the part will be cut.

• Move the mouse over the alternate cut path indicator (highlighting the lead in yellow), and left click, the cut direction can be changed.

It is also possible to view and change the lead style applied;

• Right click on the lead position and clickProperties to display the Leads dialogue box. For more information on lead styles, see Tool Use and Leads in the Profiler section.

Stitching

• Click Operation > Stitching, or click on the Stitching icon

This option can be used to stitch parts to the sheet on a part by part basis. To perform this operation;

• Click and drag a selection box around parts to be auto stitched, then right click to display the dialogue box below.



• The Stitch Gap field sets the length of the stitch.
• In the Number of Stitches field, enter the number of stitches required.
• If Stitch at Start / End of Island(s) is ticked, the cut will leave a gap between the lead in and lead out with the same length as the stitch length value.

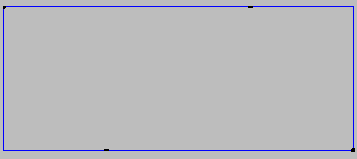

Stitches are shown by black dashes around the island.

It is also possible to manually stitch any part. To set the length of these stitches;

• Click Operation > Tool Options and alter the stitch values there and then click OK



• To apply the stitches manually, click Operations > Stitching and left click where the stitch needs to be.

Sheet Cut Rail This option allows the user to place a cut along the rail axis of the machine, select this option.

• Click Operation > Sheet Cut Rail, or click on the Sheet Cut Rail icon
• Then click in the desired position on the sheet.
• To adjust the position, move the cursor over the cut and a white square will appear, left click and hold the mouse, then drag the cut line to the new position.

Sheet Cut Beam This option works in the same way as the option above, but in the Beam Axis

• Click Operation > Sheet Cut Beam, or click on the Sheet Cut Beam icon

Zoom

• Click Operation > Zoom, or select the Zoom icon

This option activates the mouse zoom mode.

• Left click to zoom in on the cursor position, right-click to zoom out or click and drag a box to zoom on the selected area.

Ruler The ruler is a rough guide to distances on the sheet.

• Click Operation > Ruler, or click on the Ruler icon
• Then click and hold the mouse button to measure between two points. This method of measuring is not accurate in that no definite points can be designated to measure either to or from.

Tool Options The options available here will depend on which mode the operations menu is in. For example, if the Bridge or Chain Cutting is selected, the tool options will allow the user to set the lead in style. If Stitching is selected, the tool options will allow the user to set the length of the stitches.

Tools The Tools menu offers the user further options.

Select Machine for NC This option is used to determine which machine to be used when writing the NC code. The * symbol indicates that this is the default machine.

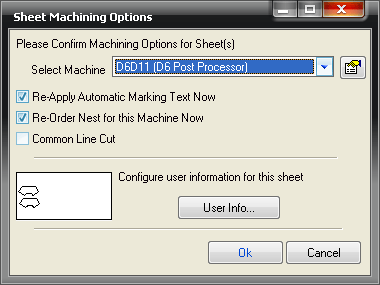

• Click Tools > Select Machine for NC and the following dialogue box will appear.



• If the Re-Apply Automatic Marking Text Now option is selected, it will re-orientate any marking on parts to fit correctly and be consistent throughout all the parts.
• Selecting the Re-Order Nest for this Machine Now will modify the cut order to the optimum configuration based on Start / Park / Home points. User Info is used to configure certain machine specific parameters such as Amperage (only available on a few machines).

Outer / Inner / Central This option will highlight the corresponding island types on the nest.

View The View menu can be used to toggle On/Off display dialogues within manual nesting. It also contains the zoom menu. Zoom commands can also be activated using F3 (Zoom In), F4 (Zoom Out), and F5 (Zoom Extents).
