Edge Nesting

The Edge Nesting option allows parts that have one blank size dimension that is equal to the sheet's width to be nested. This is particularly useful for cutting notches on Straights ducts (Pattern-1) or indeed any other part that has one blank size dimension that is equal to the sheets width.

How to enable Edge Nesting

• Click > File > Setup > Main Database or select the Main Database icon from the Utility Bar.

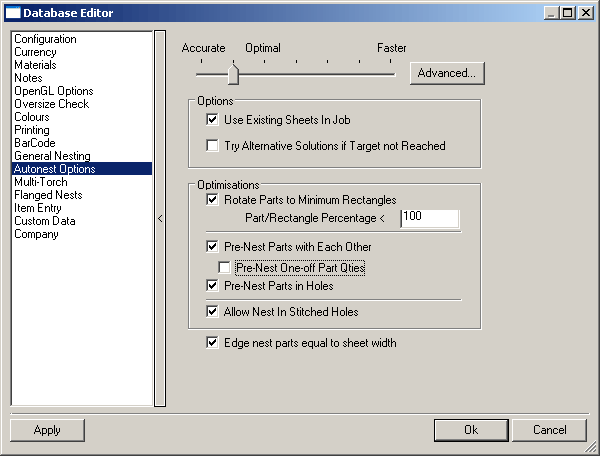

• Click on the Autonest Options tab and place a tick in the Edge nest parts equal to sheets width tick box.



• Click OK and Edge Nesting will be enabled.
  Note: There is also an Edge Nesting option in the Method tab when Automatic Nesting is selected. It is important that this is not confused with the Edge Nesting described above. If this option is selected, Edge Nesting will be the default nesting method for all parts.

How to set up a Default Lead Style for Edge Nesting

Before using Edge Nesting it is necessary to create a standard lead-out that will be applied to each 'Edge Nested' cut.

Creating a Custom Lead

• Click File > Setup > Profile Database or select the Profile Database icon from the Utility Bar.
• Click on the Custom Leads tab.
• Click on the New icon .

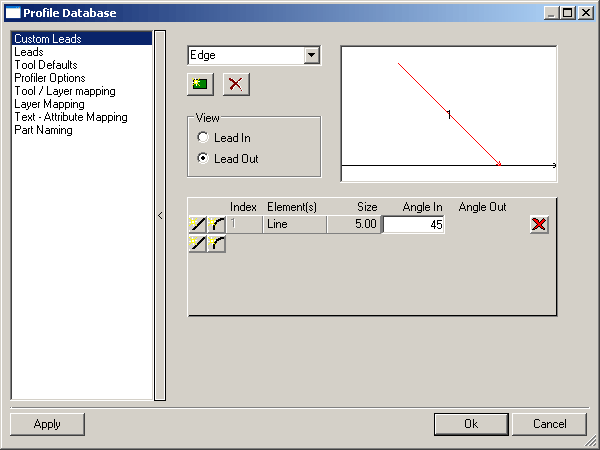

• In the text box, replace Untitled with Edge.
• Ensure that Lead Out is enabled in the View section.
• Click on the Line icon . This will enable two more fields. In the Size field type in 5 and in the Angle In field type 45.



Define a Lead Style for Edge Nesting

• Click File > Setup > Profile Database and click on the Leads tab.

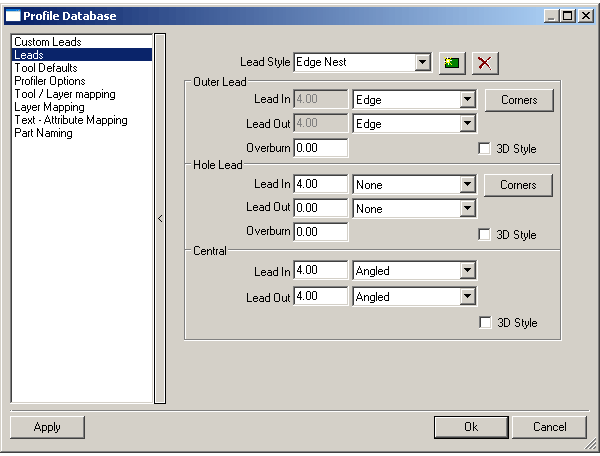

• In the Lead Style field click and in the Lead Style text box replace the word Untitled with Edge Nest.
• In the Outer Lead section, from the Lead In and Lead Out drop down menu's, select Edge.
• In the Hole Lead and Central sections ensure that all drop down menus are set to None.
• Click Apply a new Lead In / Lead Out Style has now been set up.



Apply the Edge Lead Style to Edge Lead Style in Tool Defaults

• Click File > Setup > Profile Database or select the Profile Database icon from the Utility Bar.
• Click on the Tool Defaults tab.
• Locate the Tool Defaults section and in the Edge Lead Style field, from the drop - down menu, select text Edge Nest.
• Click Apply and the Edge Nest Lead In / Lead Out will now be applied to all appropriate cuts by default.

How to use Edge Nesting

When the instructions above have been completed, it is possible to start producing parts using Edge Nesting. The following example demonstrates how Edge Nesting will be applied when a piece of straight duct is added which notches at either end.

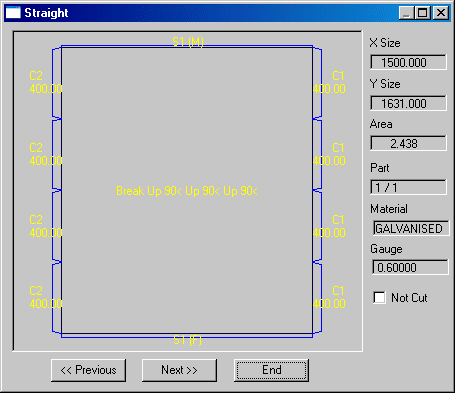

Note: The part displayed below has a blank size 'X' that matches the default sheets width, in this case 1500mm.A Slip SE connector has been applied to each end to generate a notch on both ends.

When this part is nested and the NC written it is possible to view the NC data.

• In Job Contents, click on the Nests Tab.
• Right click on the relevant sheet and from the pop - up menu select View NC

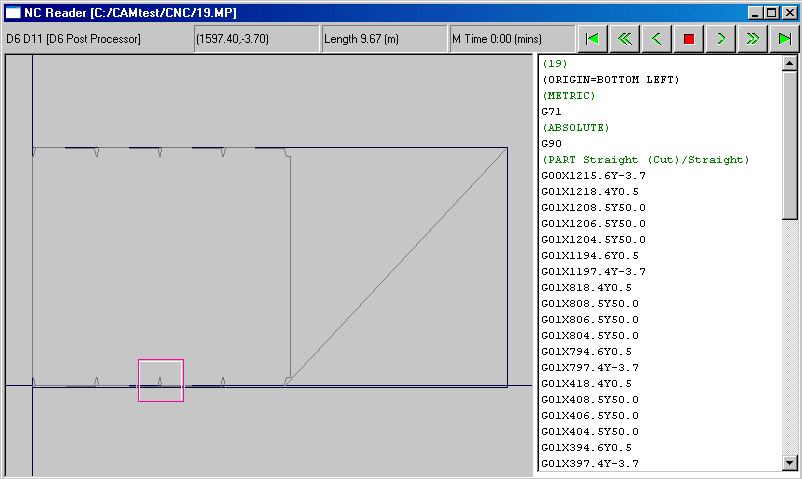

• From the pop - up menu select a relevant machine and the screen below will be visible.
• The running order of the plate can be viewed by using the control buttons.



• It's possible to zoom in on a certain section of the sheet by either left clicking the mouse in the relevant area or by positioning the mouse over a relevant area and pressing the function key F3. Zoom out using either Left click with the mouse or by pressing the function key F4.

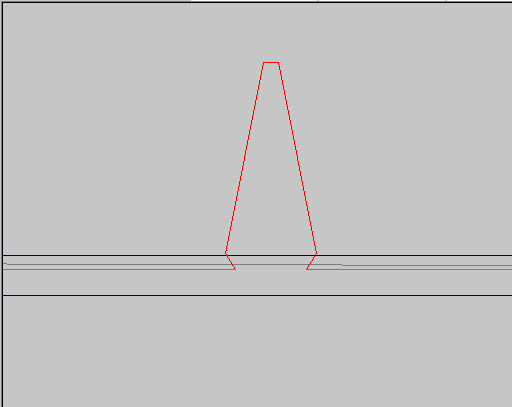

• Zoom in on one of the notches as marked above. In this view, clearly visible, is the notch, complete with the Edge Nest Lead In / Lead Out.



  Note: All parts that are exactly the same as the defaults sheet width will be edge nested.
