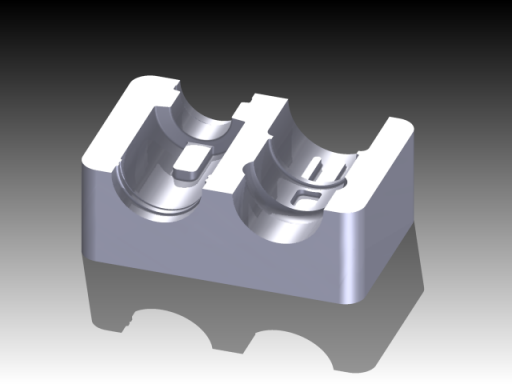

In this tutorial you will machine the 3D part shown above using the following procedures:
- Creating a Setup
- Facing the Part
- Outside Contouring (2D)
- Roughing Using Adaptive Clearing
- Adaptive Clearing Rest Machining
- Horizontal Finishing
- Contour Finishing
- Parallel Finishing
- Machining Small Radii using Pencil
- Post Processing
Before proceeding, open the part Tutorial5.ipt in Inventor HSM.
Note: The files used in these tutorials, as well as other sample datasets, can be found in the C:\Users\Public\Documents\Autodesk\Inventor HSM 2015\Examples subfolder.
