Set the Analysis Sequence

In this task, you use the set the analysis sequence to Fill + Pack.

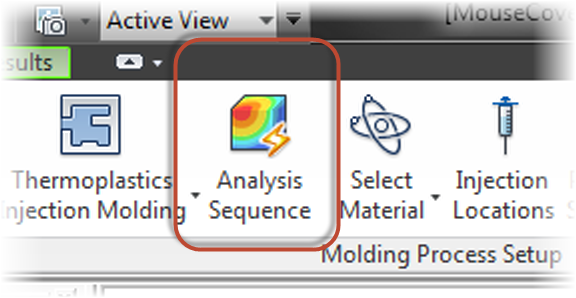

  1. Click Home tab > Molding Process Setup > Analysis Sequence.

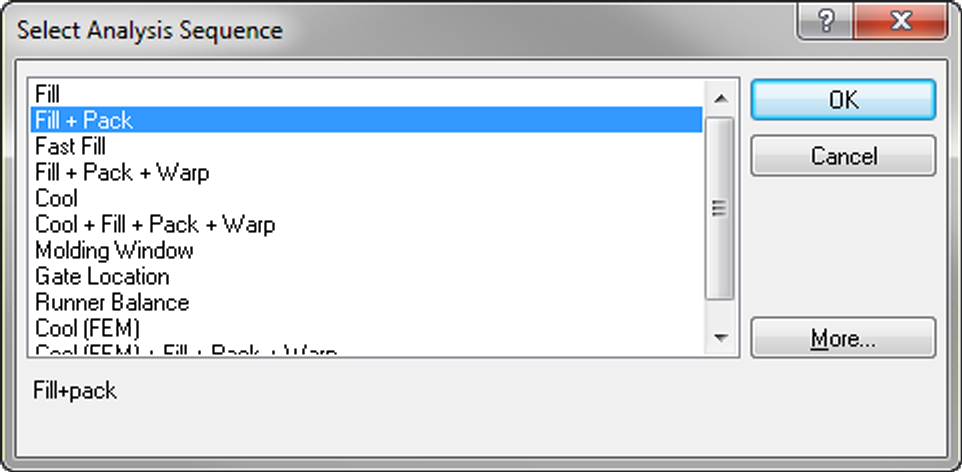

  2. Click Fill + Pack.

  3. Click OK.

  4. Click Home tab > Molding Process Setup > Select Material.

  5. Verify that the Manufacturer is LG Chemical and that the Trade Name is ABS HG-173.

  6. Click OK.
