In this task, you interpret the temperature, mold results.
-
Uncheck any result to turn it off.
-
Uncheck the two channel layers.
-
Click the Temperature, mold results.

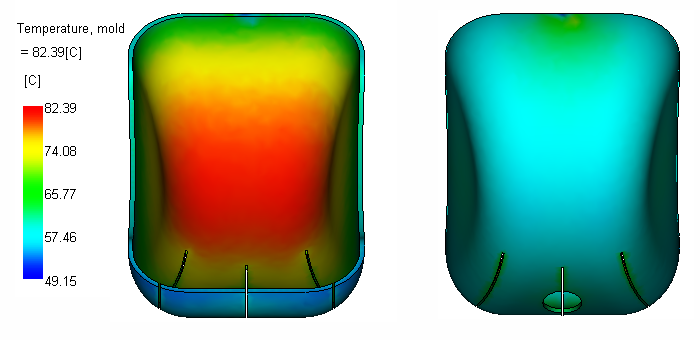

This result represents the cycle averaged mold temperature at the mold surface or plastic/metal interface. The variation in temperature for an amorphous material like the ABS used here, is best when within +/- 10°C from the target temperature. In this case, the target temperature is 70 C. The range for this part is well outside this range. Most of the part is too cool, in particular the cavity side. Also the core side is much hotter than the cavity side. This temperature distribution can contribute to the part warping.
