Verify Member Supports

Check an analytical model for support related errors.

1. Click Analyze tabAnalytical Model Tools panel Check Supports.
2. When prompted that the elective checking criteria in the Structural Settings dialog is being used to evaluate the model, click OK.
3. Review the warnings, and make the appropriate changes to your design.

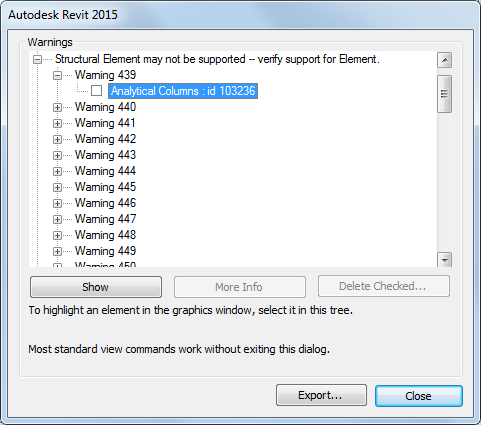

   Unsupported element warning

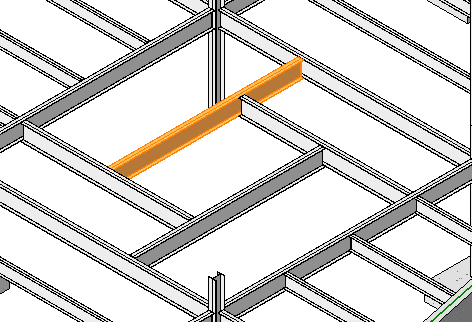

   View of unsupported element

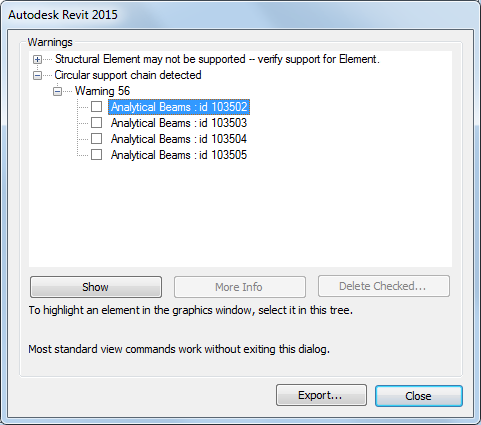

   Circular support chain warning

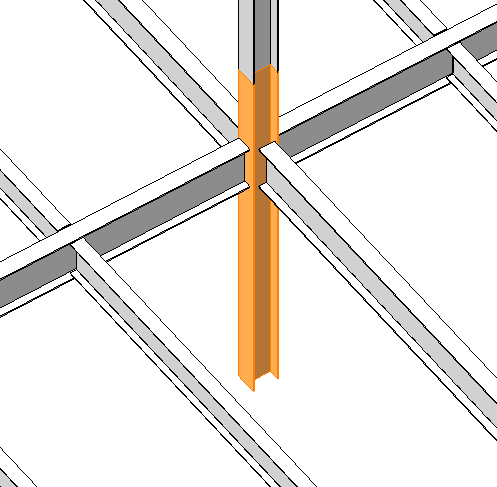

   View of circular support chain
