Place Rebar

Place individual rebar instances in section views of valid hosts.

Place individual rebar instances in plan, elevation, or section views of valid hosts.

1. Click Structure tab Reinforcement panel drop-down Reinforcement Settings. Determine if rebar shape matching references hooks. This is important to specify before any rebar is placed in a project because it cannot be changed later in the design process. Close the dialog when complete.
2. Create a view that cuts the element to be reinforced.
3. Click Structure tab Reinforcement panel Rebar.
   Note: The tool is also available on the selection Contextual Tab for elements that are valid rebar hosts.
4. In the Type selector at the top of the Properties palette, select the desired rebar type.
5. Optional. If necessary, click Modify | Place Rebar tab Family panel Load Shapes to load additional rebar shapes.
6. In either the Rebar Shape Selector on the Options Bar or the Rebar Shape Browser, select the desired rebar shape.
7. Select the placement plane. Click one of the following placement planes from Modify | Place Rebar tabPlacement Plane panel
   • Current Work Plane
   • Near Cover Reference
   • Far Cover Reference

   The plane defines where the rebar is placed in the host.

   Note: The Placement Plane tools are currently available only to students and to Autodesk Maintenance and Desktop Subscription customers for theRevit 2015 R2 release of the software.
8. Select the placement orientation or perspective.

   Planar rebar

   Click one of the following placement orientations from Modify | Place Rebar tabPlacement Orientation panel

   • Parallel to Work Plane
   • Parallel to Cover
   • Perpendicular to Cover

   The orientation defines how the rebar is aligned when placed in the host.

   Multi-planar rebar

   Click one of the following placement perspectives from Modify | Place Rebar tabPlacement Perspective panel

   • Top
   • Bottom
   • Front
   • Back
   • Right
   • Left

   The perspective defines which side of the multi-planar rebar family is parallel to the work plane.

9. If you place standard style rebar adjacent to stirrup/tie style rebar, the standard bar snaps along the edge of the stirrup/tie bar. This includes the straight edges as well as the fillets and hooks of the stirrup/tie rebar.
10. Click to place the rebar in the host. If necessary, press the Spacebar during placement to rotate the orientation of the rebar shape within the cover reference. Orientation can be shifted after placement by selecting the rebar and using the Spacebar similarly.

    Rebar lengths default to the length of the host element or to other host elements within the constraints of the cover reference. To edit lengths, change to either a plan or an elevation view, select the rebar instance and revise the end points as needed.

11. Optional. You can then apply various predefined hooks to the ends of your rebar shape.

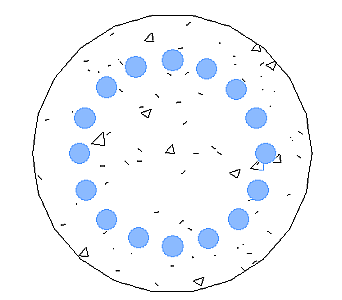

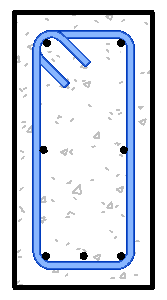

Perpendicular rebar placed in column	Rebar in a beam

Note: To rehost a rebar shape, select it and click Modify | Structural Rebar tabHost panel Pick New Host. Then select a new rebar host.
