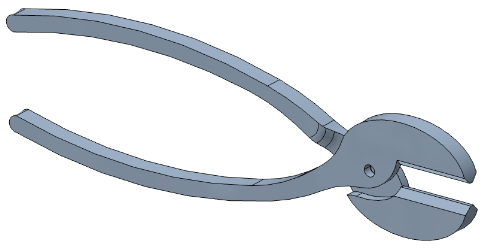

In this tutorial, we will determine the stress distribution in the vise grips from a force applied at the end of the handles when an object is between the grips.
Features Illustrated:
- Brick elements
- Surface force
- Static stress analysis
- Reviewing static stress results
