Simple dimension line

On the Job Preferences dialog, you can define parameters for dimension lines of simple elements presented in drawings.

Simple elements are basic elements of a structure model (such as beams, columns, windows, and doors) and drawing elements (such as lines, arcs, and circles) defined using AutoCAD.

If you select any option on the Autodesk AutoCAD Structural Detailing elements tab or ACAD elements tab, intersecting these elements (such as walls and beams in a structure model) with an auxiliary line will create dimension lines for them.

When you clear any option on the Autodesk AutoCAD Structural Detailing elements tab or ACAD elements tab, that element type will not be considered as you create dimension lines.

In the upper part of the dialog, specify the type of dimension line:

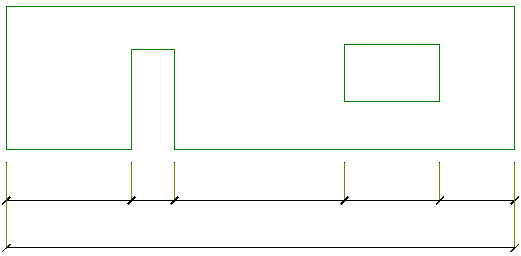

• Add total dimension - if you select this, the dimension line will represent the total dimension of selected elements.

• Show dimensions to axis option - if you select this, the dimension line will display dimensions to axes of selected elements.

Note: You can use 2 options to modify dimension lines that you created:

• Add division point to dimension line
• Delete division point from dimension line

(See description of options in the menu of Autodesk AutoCAD Structural Detailing - Formwork Drawings).

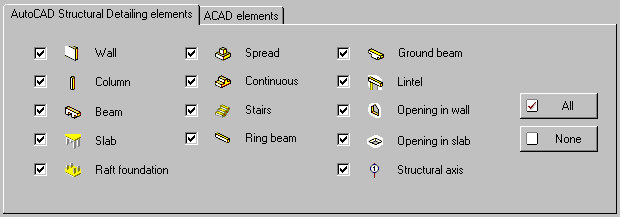

The Autodesk AutoCAD Structural Detailing elements tab

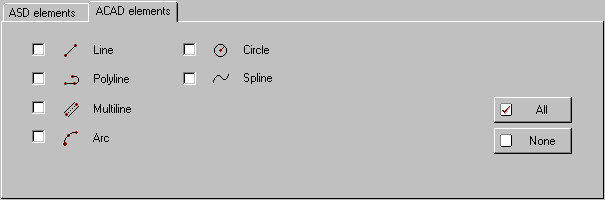

The ACAD elements tab

To select all options on either tab, click All. To clear all options, click None.
