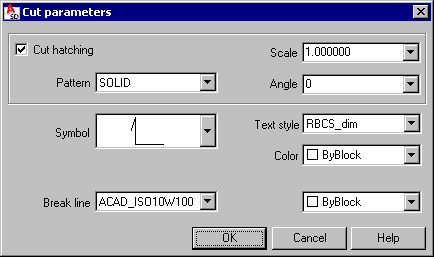

The Cut parameters dialog displays when you click Cut parameters in the Definition modification of a dimensioning style dialog.
If Cut hatching is selected, surfaces seen as cuts through element walls are hatched.
Define hatching parameters:
- Pattern - select an available pattern from AutoCAD®
- Angle - select the value of the inclination angle of the hatching pattern
- Scale - select a value that will elongate or shorten the hatching pattern
In the lower part of the dialog, it is possible to determine parameters of a cut through elements:
- Cut symbol
- Style and color of text
- Style and color of a break line
