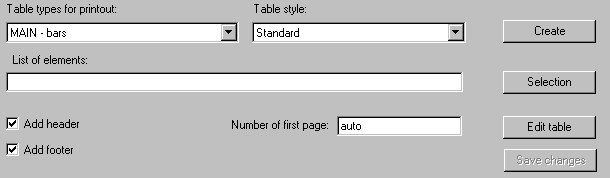

After you select Table composition from the selection tree in the left part of the Table printout manager dialog, the options shown below display on the right.
For steel structure elements, choose a table type:
- Material summary
- Plate summary
- Profile summary
- User parts
- Element list
- Assembly list
- Bolt (rivet) list
- Cut list
- Bolt assign
For RC structure elements, choose a table type:
- Main (reinforcing bars)
- Summary (reinforcing bars)
- Detailed (reinforcing bars) - this requires graphically selecting the distribution varying linearly / surface bar distribution or entering a number of reinforcement position
- Main (elements) - see the description of the Element manager dialog
- Main (wire fabrics)
- Summary (wire fabrics)
For each table type, you can choose a table style defined previously for the selected table type.
Click Create to generate a table of a given type based on the current element list (if the list is empty, a printout of a whole structure is made) in the format of the active table style (see: Styles applied in tables).
The List of elements field displays numbers of the elements included in a table. Clicking Selection closes the dialogs and lets you graphically select elements to be included in the table.
Clicking Edit table lets you graphically indicate the table to be edited. Changes made in a table may be saved after you click Save changes.
Use the options at the bottom of the dialog:
- Number of first page - specify a number of the first page to be printed
- Add header - if this is selected, a defined header will display on a printout
- Add footer - if this is selected, a defined footer will display on a printout
