Options

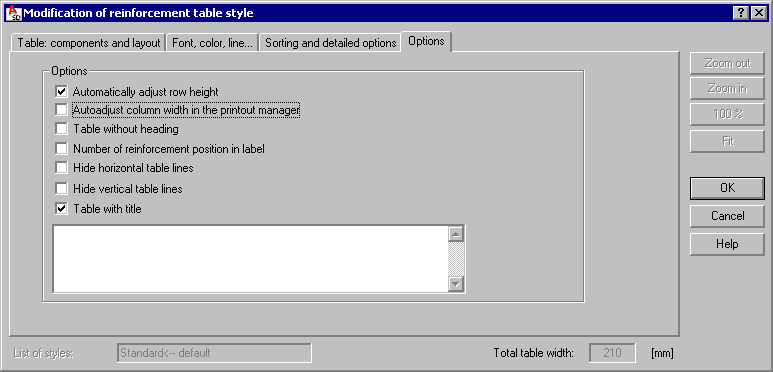

Once the Options tab is selected in the Definition/modification of reinforcement table style dialog, the following dialog displays:

The following options are available in the Options field:

• Automatically adjust row height - if this option is selected ( symbol appears), then height of table rows will be automatically adjusted to the size of symbols of element shapes presented in the table
• Auto adjust column width in the printout manager - if this option is selected ( symbol appears), then widths of table columns are automatically adjusted to fit lengths of titles of table columns (see the description of the Table printout manager dialog)
• Table without heading - if this option is selected ( symbol appears), then the table generated will not have a heading
• Number of reinforcement position in label - if this option is selected ( symbol appears), then a number of reinforcement position in the table will be presented in a circular label
• Hide horizontal table lines - if this option is selected ( symbol appears), then horizontal lines will not be shown in the table
• Hide vertical table lines - if this option is selected ( symbol appears), then vertical lines will not be shown in the table.
• Table with title - if this option is selected ( symbol appears), then the edit field in the lower part of the dialog becomes accessible and a table title may be entered; a font used in the table title is defined on the Font, color, line tab.
