Retaining Wall - Shelves

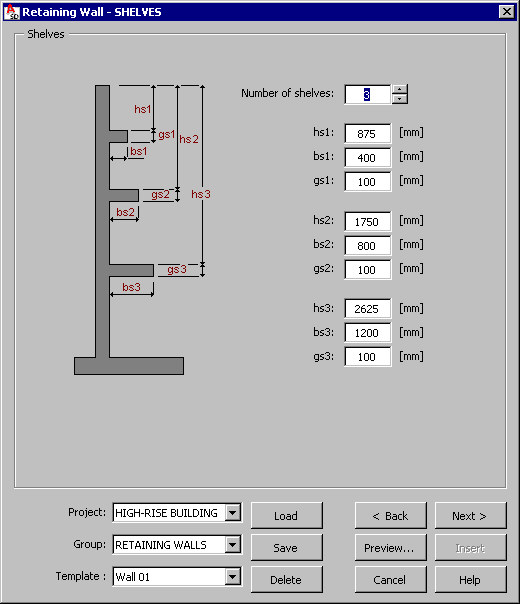

After defining the dimensions for the retaining wall footing, click Next. The following dialog displays:

The top part of the dialog provides fields for selecting a number of shelves of a retaining wall (the number of shelves may not be greater than 3). Once the number of shelves is determined, the lower part of the dialog displays a list of dimensions for the relevant number of retaining wall shelves.

After defining dimensions for the retaining wall shelves and clicking Next, the Retaining wall - Reinforcement dialog displays.
