Corbel reinforcement

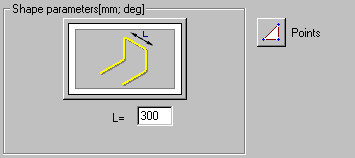

After selecting the corbel reinforcement (e.g. short cantilevers to be placed under a crane girder), the Special reinforcement dialog displays:

To define a bar, specify the following:

Bar diameter (the diameter defined in the dialog is adopted by default)
Reinforcing bar cover (the cover defined in the dialog is adopted by default)
In the Shape parameters field - reinforcement leg length ('depth') (dimension perpendicular to the drawing plane).

While defining the corbel reinforcement, click (Points), to define successive snap points for this type of reinforcement.

Command line:

Select first point

Select second point or [Side / Cover]

Select third point or [Side / Cover]

Indicate location of open segment of a bar

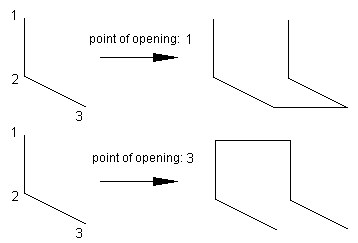

where: first, second and third points - successive reinforcement snap points (see the drawing below)

Cover - determines a cover value for individual segments of reinforcement

Side - changes position of reinforcement with respect to an object (formwork)

Location of open segment of a bar - indicates a point (in the plane) at which bar opening is located - see the drawing below.
