Define Loads

In this tutorial, you learn how to define and apply dead loads, including self-weight and uniform loads, to a 2D structure.

This tutorial guide through the following tasks.

This tutorial should take about 10 minutes.

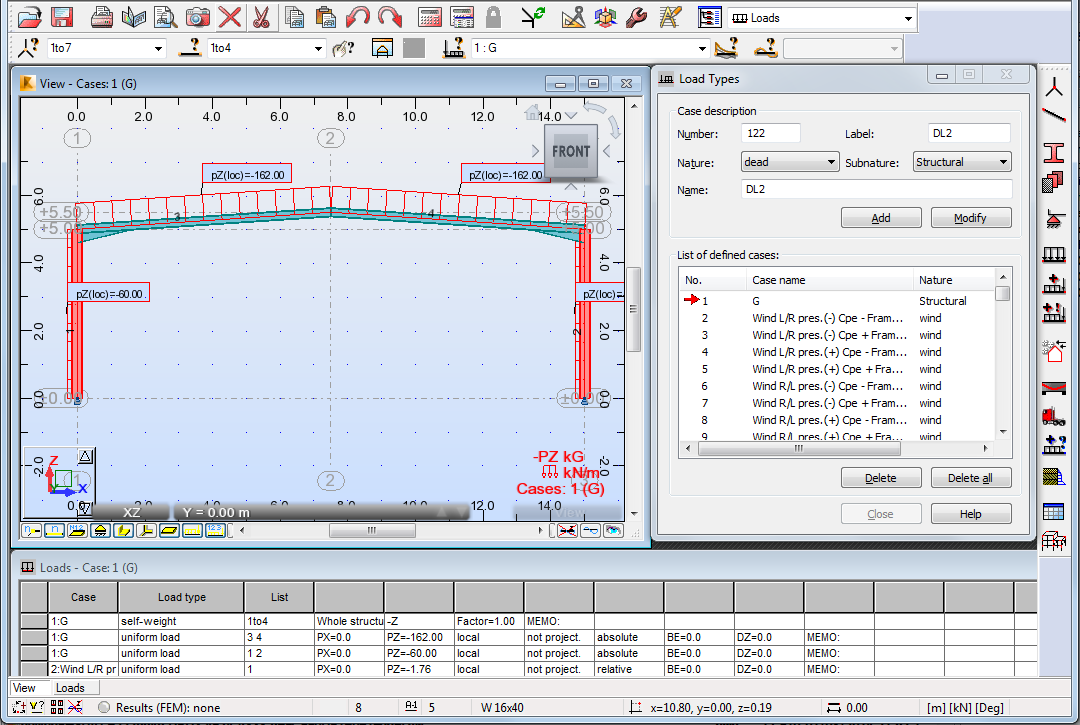

The final layout of the project is shown below.



Click here to start this tutorial.

Tasks list:
  1. Apply dead loads
    Learn how to define and apply self-weight and uniform loads to the structure.
  2. Apply special loads
    Learn how to select the appropriate Design Codes for loads and then how to apply wind and snow loads to the structure.
  3. Generate load case code combinations
    Learn how to generate automatic load case code combinations.
  4. Summary
    Congratulations! You have completed this tutorial.
Parent topic: Tutorials: Frame 2D Design
