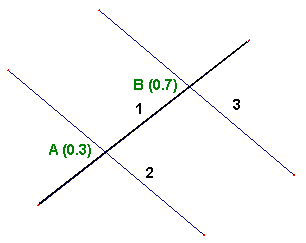

The following image shows the number 1 bar trim operation by using number 2 and 3 bars. Point A denotes the cut point of number 1 and 2 bars (0.3 value denotes a relative coordinate of the bar cut point along the bar number 1), and point B denotes the cut point of the bars number 1 and 3 (0.7 value denotes a relative coordinate of the bar cut point along the bar number 1).
In the Trim dialog the following parameters are specified:
- Trim object in the Bar/Object field - bar number 1
- Trim Object Selection field: bars number 2 and 3.
Which part of the bar number 1 is trimmed depends on the selection of the point coordinate on the trimmed part of the bar.
Example 1

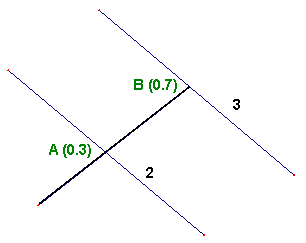

In the Relative Coordinate of the trim object part field, the value from the (0, 0.3) interval 0.1 is entered. The trim operation result is shown as follows:
Example 2

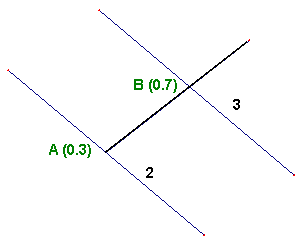

In the Relative Coordinate of the trim object part field, the value from the (0.3, 0.7) interval 0.5 is entered. The trim operation result is shown as follows:
Example 3
In the Relative Coordinate of the trim object part field, the value from the (0.7, 1.0) interval 0.9 is entered. The trim operation result is shown as follows:
