Define a Composite Layup

After the part is imported and the temporary material is added, create the composite layup definition.

As mentioned previously, our composite part will have a [0/±45/90]s layup. We will create a coordinate system from which we can rotate each of the four angles in our layup.

  1. Click the Geometry tab and specify Create, Coord, 3Point.
  2. In the Coord ID List box, name the coordinate system 11 and set the Type to Rectangular.
  3. Set the Origin at [0 0 0], the Point on Axis 3 to [0 0 1], and the Point on Plane 1-3 as [0 1 0].
  4. Click Apply.

The new coordinate system should appear as shown below.

Now that we have created the base coordinate system, we can create the layered composite section.

  1. Click Properties > Composite > Laminate.
  2. In the dialog that appears, create an 8 ply laminate using the 9013 material name (or the appropriate material ID for the IM7_8552 material). To add the material, click 9013 from the Existing Materials list until 8 plies have been added.
  3. In the Laminated Composite dialog window, set the thickness of each layer to 0.005.
  4. Select the first row of the Orientation column and enter the following in the Input Data field: 0/45/-45/90/90/-45/45/0 then hit Enter.
  5. Select the first row of the Global Ply ID column and enter the following in the Input Data field: 1/2/3/4/5/6/7/8 and hit Enter.

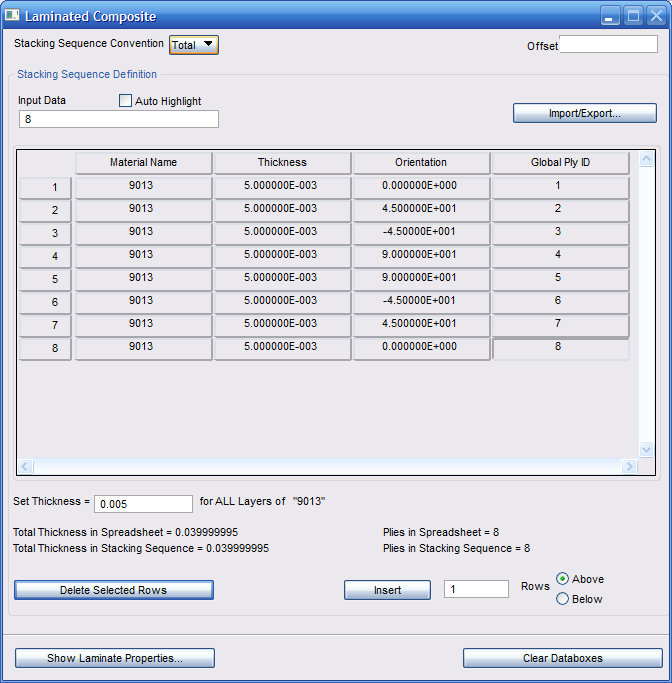

  6. The Laminated Composite window should appear as shown below:

  7. On the Materials form, name the laminate Ply and click Apply.

The final steps modify the existing solid property to a layered solid composite property (PCOMPLS).

  1. On the Element Properties form (Properties > 3D Solid Properties > Solid), select Modify, 3D, Solid.
  2. In the New Property Set Name box enter 1.
  3. Select Laminate from the Options menu and click the Modify Properties button.
  4. Enter the laminate name Ply.
  5. Click in the Material Orientation box and select coordinate system 11 from the viewport.
  6. Specify the Thickness Direction 3D as Element Z Direction and the SLCOMP Integration Scheme as Assumed Strain. Click OK.
  7. Click Select Application Region and select the entire model. Click Add.
    Note: You may have to select the Hex Element button to enable selection of the model elements.

  8. Click OK and click Apply on the Element Properties form.
