FAQ: How are multiple tubes cut at a single node?

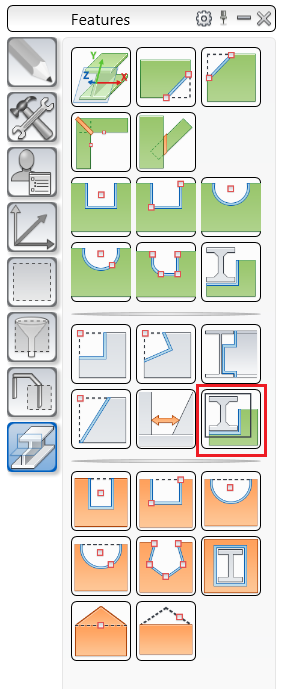

To cut multiple tubes at a single node, use the Element contour - Rule command:

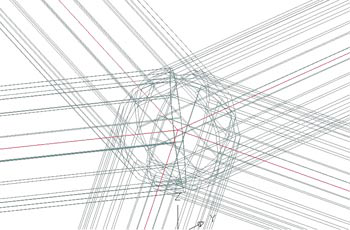

1. Align the tubes with their system axes meeting at a single node.

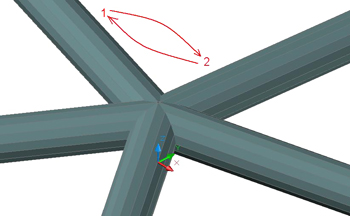

2. Select the tubes in pairs. First, use the command on Tube 1 and on Tube 2. Then, use it on Tube 2 and Tube 1, to obtain a symmetrical cut between the two tubes.



3. Repeat for all the tube pairs.
   Note: This example contains 5 tubes and requires 10 cuts in order to avoid collisions between the tubes.
