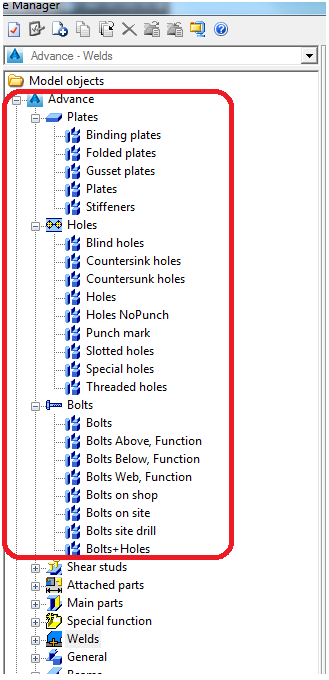

Renamed / regrouped model objects according to their definitions, cleaned up their names so they are clearer and adjusted discrepancies between name and definition.
| Before | Now |
|---|---|
 |
 |

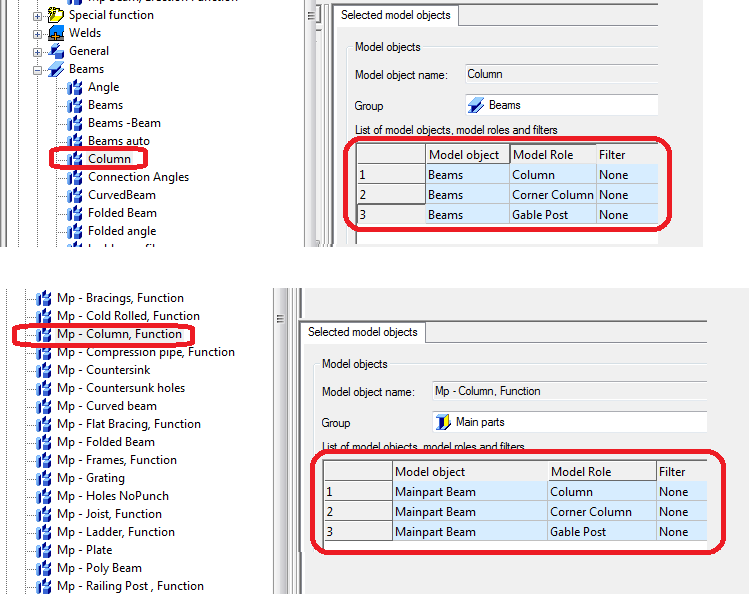

Introduced additional model roles to the column model objects:

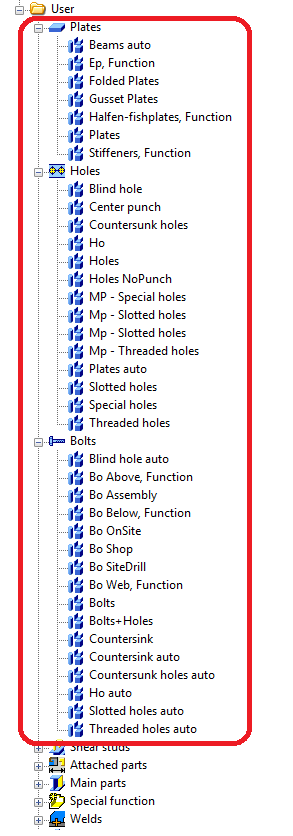

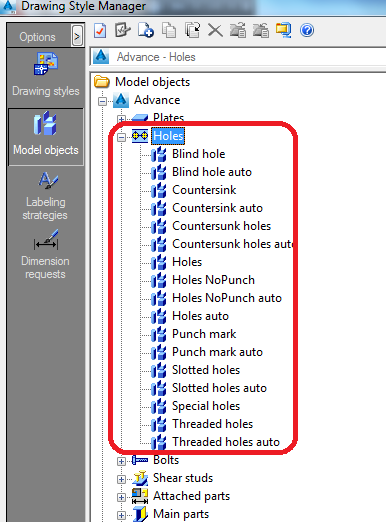

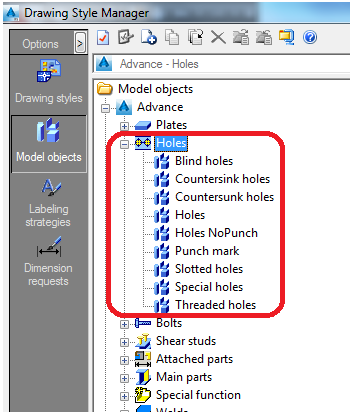

Removed duplicate records (the auto ones) for holes, plates, beams and shear studs and also deleted other duplicate records.
| Before | Now |
|---|---|
 |
 |

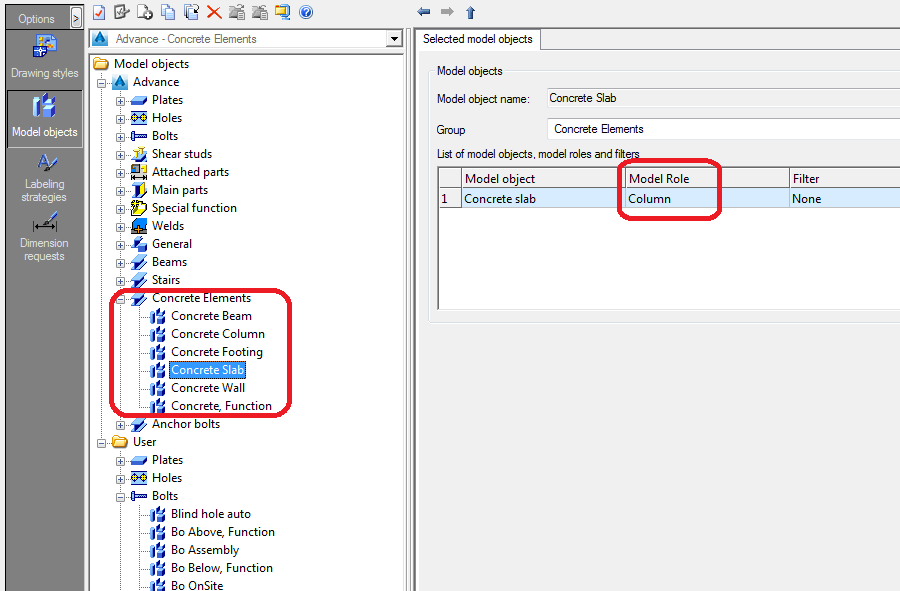

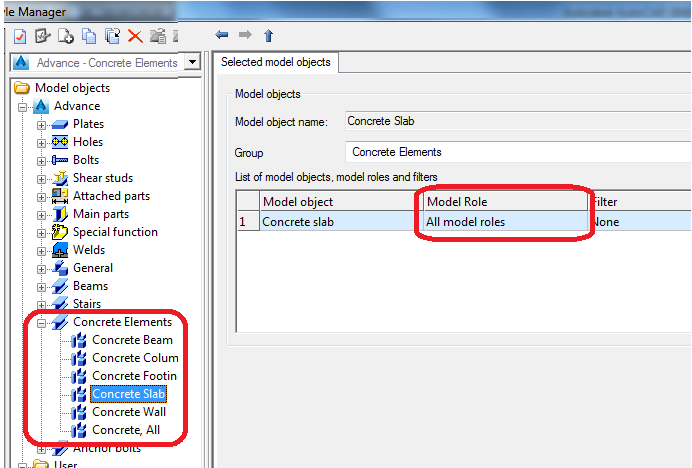

Corrected the settings for concrete elements (most of them had the Column model role, although the elements were slabs, footing, etc.)
| Before | Now |
|---|---|
 |
 |
Adjusted and clarified the Environment element definition for the model objects used on overview vs. assembly drawings.
For overview styles

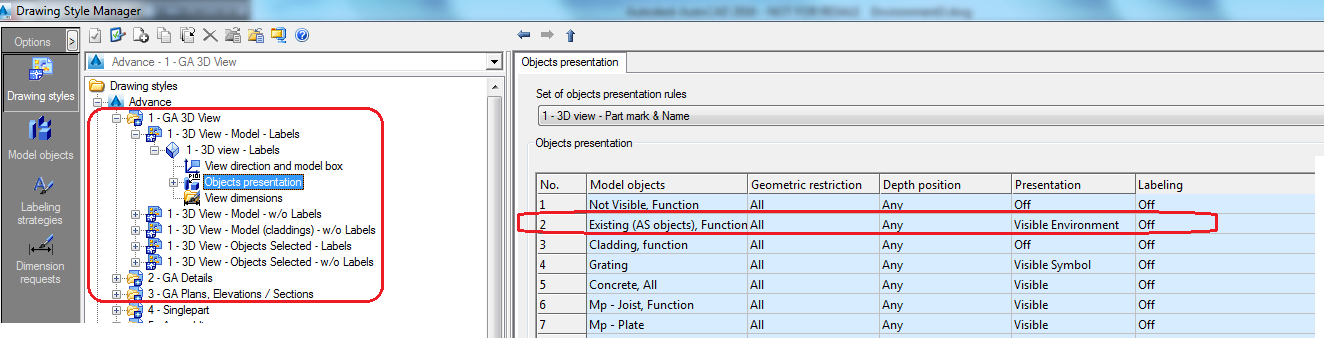

Adjusted the representation and settings for existing / environment Advance Steel model objects on overviews - assigned a better name (Existing (AS objects), Function) and settings (use Existing or Environment model role), in order to differentiate them from model objects used for environment in assembly drawings.
For assembly styles

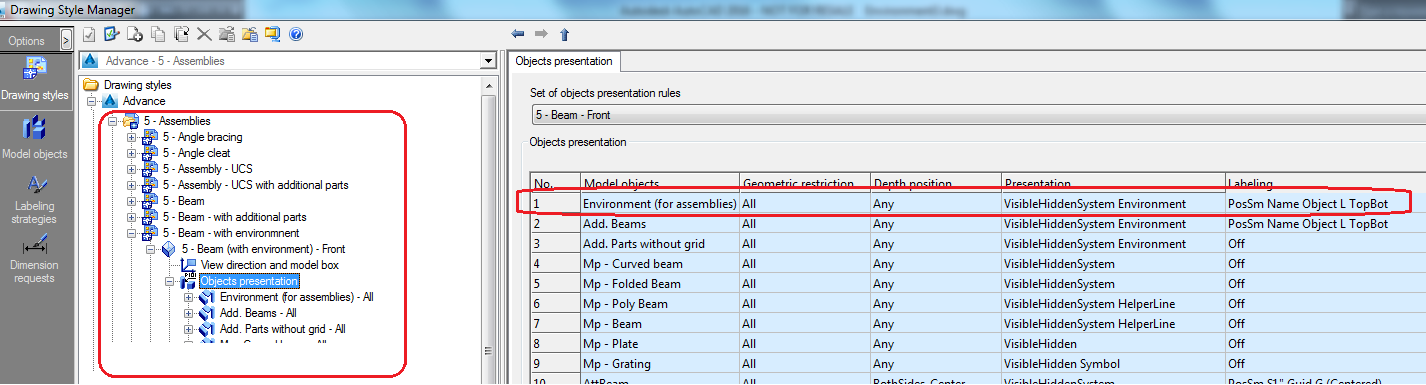

Adjusted the name of Advance Steel model objects used for environment on assemblies drawings - Environment (for assemblies) - in order to easily differentiate them from the environment used on overviews.
| Overviews |
 |
| Assemblies |
 |
