The inconsistent behavior that occurred when inputting and showing the grating width and length values for rectangular variable gratings, with a load direction (hatch direction) non-perpendicular on the grating direction was fixed.
The behavior change consists of the following:

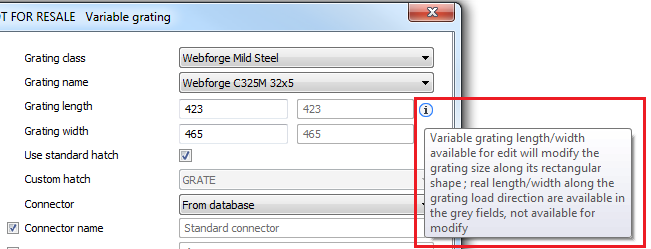

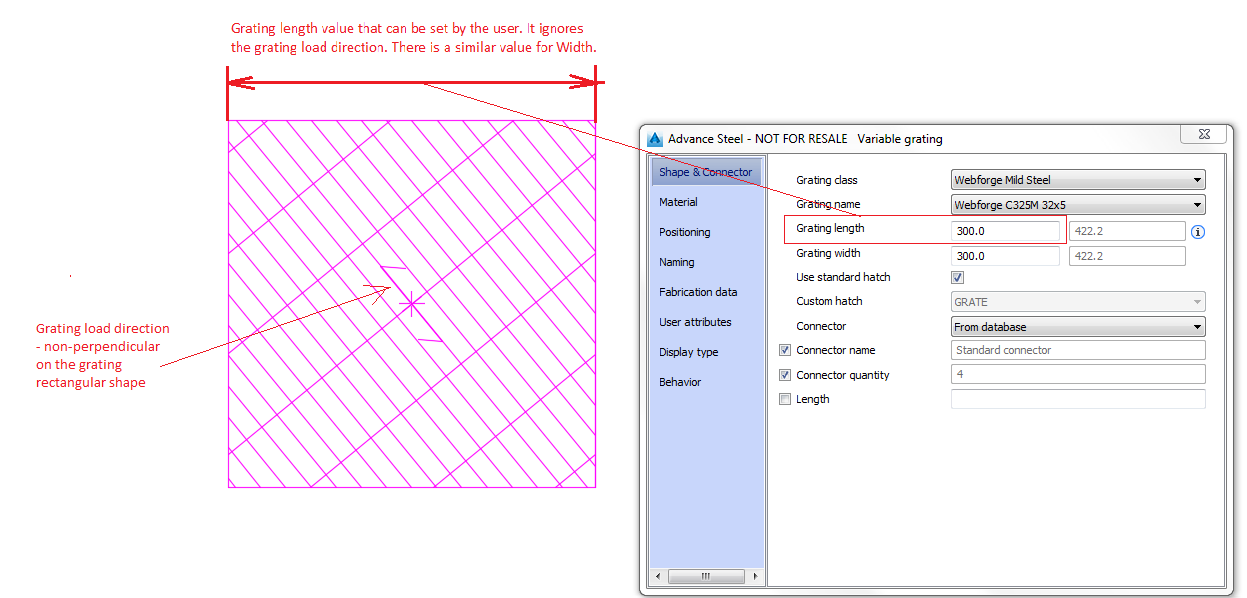

- The dialog now contains two values that you can use. These two values change the visible shape of the rectangular grating, along the width and length values, ignoring the load orientation.

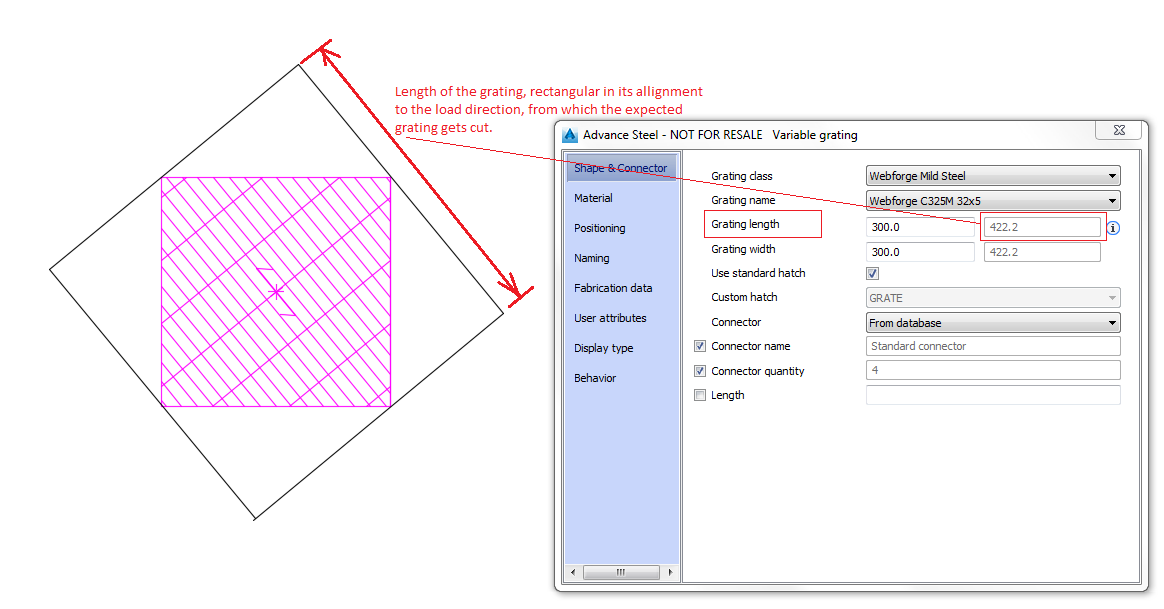

- Grating width and length - grey values. These values are calculated based on the smallest area rectangle that fits inside the modeled rectangle grating and is aligned to the grating load direction. The size of this grating is important as the grating is fabricated from a piece of grating with the load direction aligned to its length and is then cut to match the required modeled grating.
